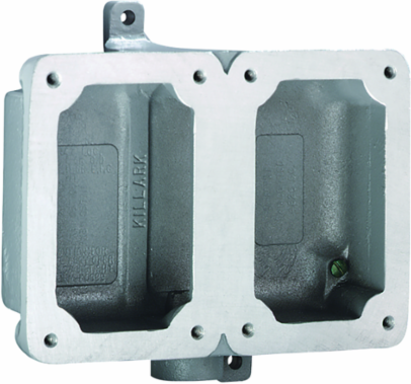

Killark FXB-7 Aluminum Double-Gang Dead-End Splice Box 1/2 Inch Hub Size, UL Listed
- MPN: FXB-7
- UPC: 783936200361
- PPN: HBL-FXB-7
- UNSPSC: 39122216
CAD
$612.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXB Series - Aluminum Dead-End Double-Gang Splice Box - Factory Sealed -Hub Size 1/2 Inch
Features
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 8.125 in x 6 in x 6.75 in |
| Height | 6.75 in |
| Application | The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies |
| Mounting | Wall |
| Special Features | Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through. |
| Weight | 3.22 lb. |
| Mounting Type | Wall |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SPLICE BOX 1/2" 2GANG DEAD END |
| Harmonization Code | 7616995190 |
| Lead Time | 35 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714, LR11712 |
| UL File Number | E53360 |
| Series | FXB Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Depth | 2 in |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 8.125 in |
| Color | Gray |
| Size | 8.125 in x 6 in x 6.75 in |
| Type | Aluminum Factory Sealed Double Gang Dead-End Splice Box |
| Width | 6 in |
| Nema Rating | 3 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 3.22 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936200361 |
| NAICS Code | 3359326103 |
