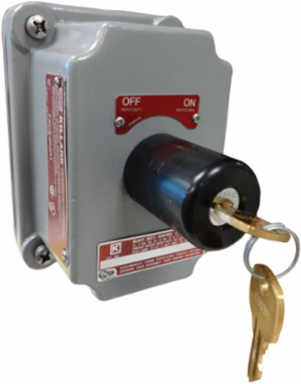

Killark FXCS-0S2L3F Aluminum Spring Return 2-Position Selector Switch Cover, 6.63 Inch x 6 Inch x 4.38 Inch, 10 A
- MPN: FXCS-0S2L3F
- UPC: 783936200712
- PPN: HBL-FXCS-0S2L3F
- UNSPSC: 39122216
CAD
$1955.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Aluminum Spring Returned 2-Position Selector Switch Cover With Device - Factory Sealed - Spring Return To Left From Right - "Off -On"/Blank Nameplate - 1NO/1NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 6.63 in x 6 in x 4.38 in
- Height
- 4.38 in
- Action
- Momentary
- Amperage Rating
- 10 A
- Color
- Black
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Aluminum Factory Sealed Cover With 2-Position Selector Switch
- Width
- 6 in
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CVR W/ DEVICE 2POS STAND
- Harmonization Code
- 8536509025
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- UL File Number
- E53360, E12379
- Series
- FXCS Series
- BOX SIZE
- 4.380x6.630x6.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936200712
- Master Pack Description
- Each
Back Box TypeFXB
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length6.63 in
Actuator2 Position Selector Switch
ApplicationSEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Number of Poles1
Special FeaturesKillark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Weight3.30 lb.
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714, LR11712
Gross Weight with Packaging3.3
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
