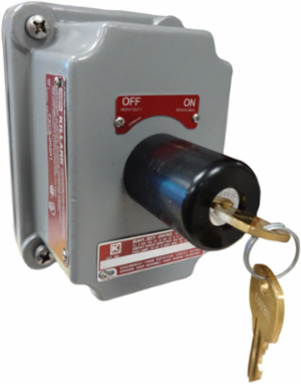

Killark FXCS-0K2A5 Aluminum 2-Position Keyed Selector Switch Cover, 6.5 Inch x 6.125 Inch x 4.75 Inch, 10 A
Killark FXCS-0K2A5 Aluminum 2-Position Keyed Selector Switch Cover, 6.5 Inch x 6.125 Inch x 4.75 Inch, 10 A
- MPN: FXCS-0K2A5
- UPC: 783936200620
- PPN: HBL-FXCS-0K2A5
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2457.09/ EA
Description
FXCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed 2NO/2NC Contact
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- FXB
- Dimensions
- 6.5 in x 6.125 in x 4.75 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.5 in
- Actuator
- 2 Position Key Selector Switch
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Number of Poles
- 1
- Special Features
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
- Weight
- 3.14 lb.
- Frequency Rating
- 50/60 Hz
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- Gross Weight with Packaging
- 3.14
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Country of OriginUS
Each - Width6.125 in
Height4.75 in
ActionMaintained
Amperage Rating10 A
ColorBlack
Size6.5 in x 6.125 in x 4.75 in
TypeAluminum Factory Sealed Cover With 2-Position Key Selector Switch
Width6.125 in
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceCVR W/ DEVICE 2POS KEYED
Harmonization Code8536509025
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Factory SealedFactory Sealed
UL File NumberE53360, E12379
SeriesFXCS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936200620
Certifications
- EU RoHS Indicator
- Contact Manufacturer
