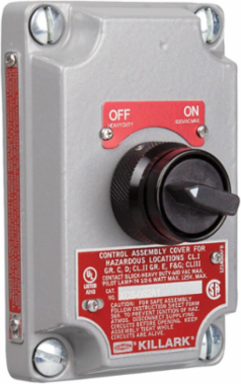

Killark XCS-0S2A1 Aluminum Selector Switch Cover - 2 Position, 1NO/1NC, 6.875 x 5.75 x 4.75 Inch
- MPN: XCS-0S2A1
- UPC: 783936890135
- PPN: HBL-XCS-0S2A1
- UNSPSC: 39122216
CAD
$453.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series - Aluminum Maintained Contact 2-Position Selector Switch Cover With Device - "Off - On" Nameplate - 1NO/1NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Country of Origin
- United States
- Color
- Black
- Dimensions
- 6.875 in x 5.75 in x 4.75 in
- Height
- 4.75 in
- Width
- 5.75 in
- Actuator
- 2 Position Selector Switch
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Frequency Rating
- 50/60 Hz
- Type
- Aluminum Cover With 2-Position Selector Switch
- Description - Invoice
- CLI 2POS SEL SW CV (CS)
- Harmonization Code
- 8536509999
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size6.875 in x 5.75 in x 4.75 in
ARRA CompliantContact Manufacturer
Back Box TypeSWB
Depth3-5/16 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length6.875 in
ActionRotary
Amperage Rating10 A
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Replaced Catalog NumberXCS-0S2A0
Sub Class CodeD25D250
Gross Weight with Packaging1.52
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936890135
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
