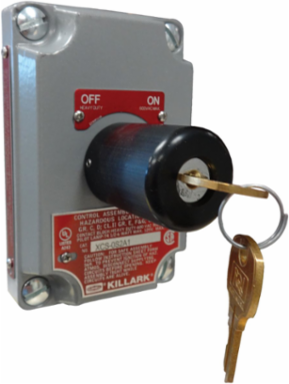

Killark XCS-0K2A5A Aluminum 2-Position Keyed Selector Switch Cover, 7.5 Inch x 6 Inch x 4 Inch
- MPN: XCS-0K2A5A
- UPC: 783936960470
- PPN: HBL-XCS-0K2A5A
- UNSPSC: 39122216
CAD
$1161.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Keyed Alike With Key Removal In Both Positions - "Off - On" Nameplate - 2NO/2NC Contact Rating
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 2-3/4 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 7.5 in
- Actuator
- 2 Position Selector Switch
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC.
- Size
- 7.5 in x 6 in x 4 in
- Type
- Aluminum Cover With 2-Position Key Selector Switch
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COVER ASSY KEYED ALIKE 2 P SEL SWT MAINT
- Harmonization Code
- 8536509025
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- UL File Number
- E53360
- Series
- XCS Series
- BOX SIZE
- 26.130x7.000x6.380 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936960470
- Master Pack Description
- Each
Back Box TypeSWB
Dimensions7.5 in x 6 in x 4 in
Height4 in
ActionRotary
Amperage Rating10 A
ColorBlack
Number of Poles1
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Width6 in
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.74
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
