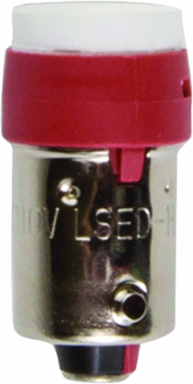

Killark GOLED-R110 LED Pilot Light Lamp, 110V, Red, 3 Inch x 1 Inch x 3 Inch, Bayonet Base
Killark GOLED-R110 LED Pilot Light Lamp, 110V, Red, 3 Inch x 1 Inch x 3 Inch, Bayonet Base
- MPN: GOLED-R110
- UPC: 783936226651
- PPN: HBL-GOLED-R110
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$190.23/ EA
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Specifications
- Size
- 3 in x 1 in x 3 in
- ARRA Compliant
- Contact Manufacturer
- Dimensions
- 3 in x 1 in x 3 in
- Length
- 3 in
- Action
- Bayonet Base Lamp
- Frequency Rating
- 50/60 Hz
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Series
- GO Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936226651
Special FeaturesKillark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Country of OriginJapan
Height3 in
Width1 in
ApplicationFor use with G Series custom control panel operators.
TypeLED Pilot Light Lamp
Description - InvoiceLMP, LED RED 110V BAYONET BASE
Harmonization Code8531809999
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.1
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
