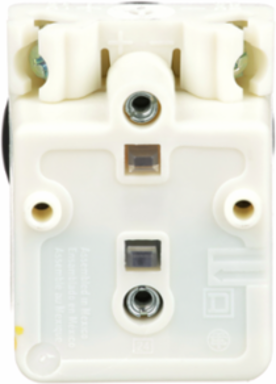

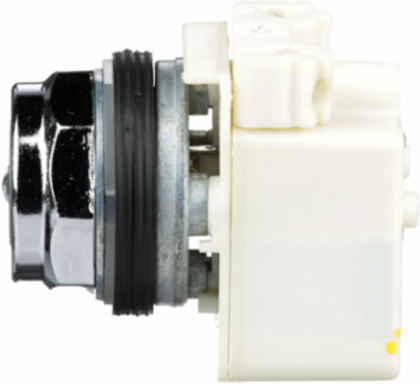

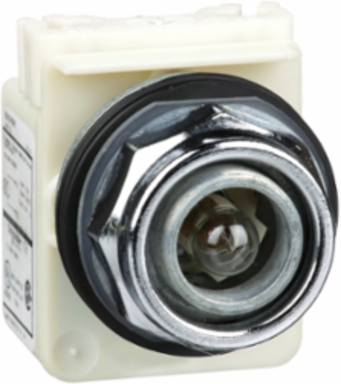

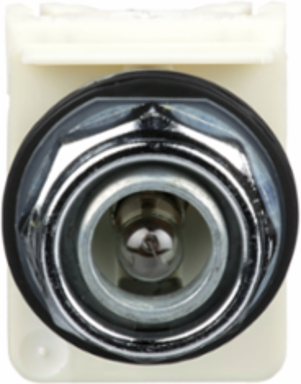

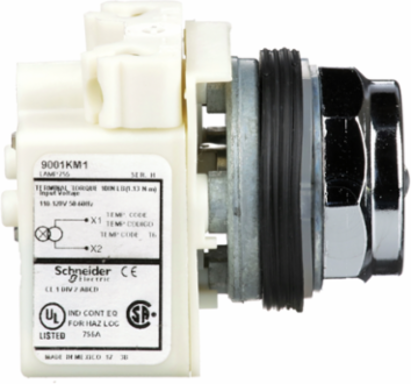

Schneider Electric 9001KP1 Harmony 9001K Pilot Light Head, 30mm, 110-120V, Metal, Without Cap
- MPN: 9001KP1
- UPC: 785901732501
- PPN: SCH-9001KP1
CAD
$184.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This pilot light is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel and is delivered without color cap. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Device Short Name
- K
Product Or Component Typehead for pilot light
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- Light Source
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operating Mode
- normal
- Shape Of Screw Head
- round
- Supply Frequency
- 50...60 Hz
Bezel Materialmetal
Light Block Supplyvia transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
Light Block Supplyvia integral transformer
Cap/Operator Or Lens Colourwithout cap
Size30 mm
Bulb BaseBA 9s
Environment
- Product Certifications
- CE || CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
