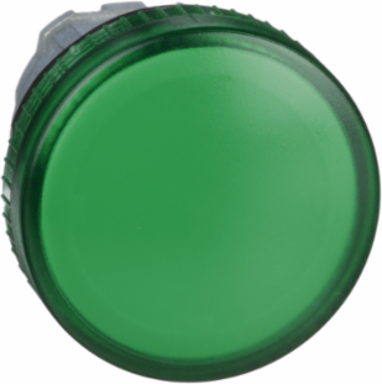

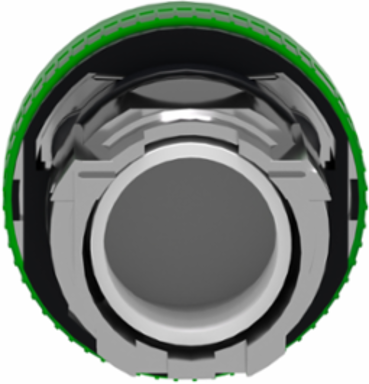

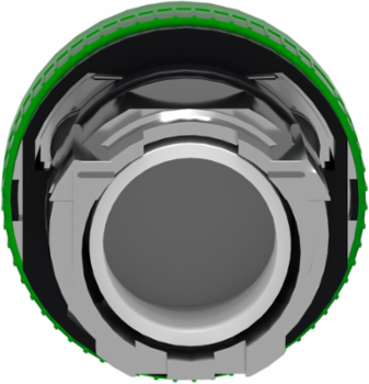

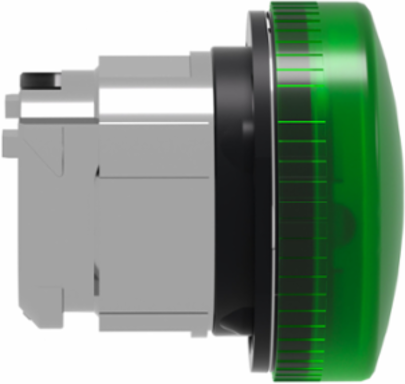

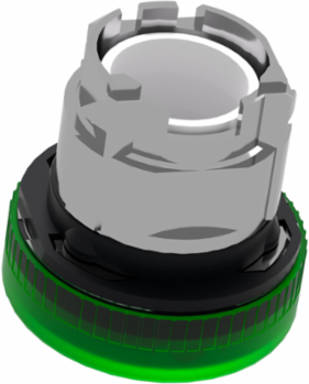

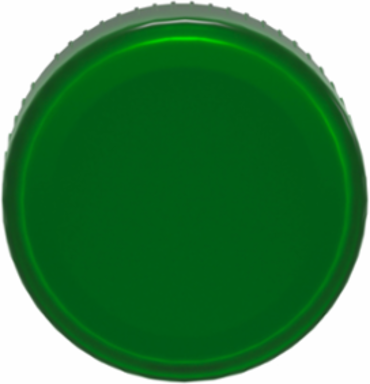

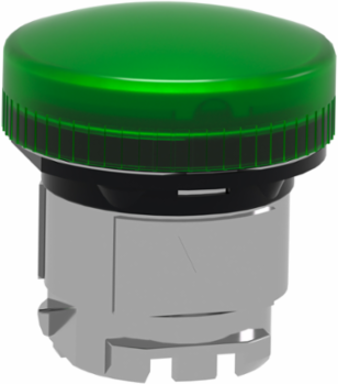

Schneider Electric ZB4BV03 Harmony XB4 Green Pilot Light Head, 22mm - IP66, BA9s Base
- MPN: ZB4BV03
- PPN: SCH-ZB4BV03
CAD
$8.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- Designed for standard 22mm panel cutouts, this Harmony XB4 pilot light head features a rugged chromium-plated metal construction that resists severe mechanical impact and machine vibration. This heavy-duty durability ensures your control panels maintain reliable visual status indication, eliminating the frequent replacement costs associated with brittle plastic components in tough manufacturing settings.
- Completely sealed against dust, liquid, and extreme temperatures, this green indicator head boasts superior IP66, IP67, and IP69K environmental protection ratings. This makes it the perfect fail-safe solution for food processing plants or outdoor industrial facilities, guaranteeing your indicator lights won't short out, degrade, or fog up during aggressive, high-temperature steam cleaning routines.
- Engineered specifically for use with high-intensity integral LED light blocks, the flush, plain green lens provides sharp, high-contrast illumination that operators can easily see from a distance. By instantly communicating a clear "machine running" or "safe" status, it prevents dangerous operator confusion, significantly improving workplace safety and reducing costly operational errors.
- As a core component of the highly versatile Schneider Electric Harmony XB4 series, this pilot light head utilizes a simple, tool-free snap-on mechanism for lightning-fast assembly with compatible light bodies. This intelligent modular design drastically cuts down installation time for OEM panel builders, allowing maintenance technicians to perform rapid, stress-free retrofits that keep production line downtime to an absolute minimum.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Physical Attributes
| Cap Operator Or Lens Color | green |
|---|---|

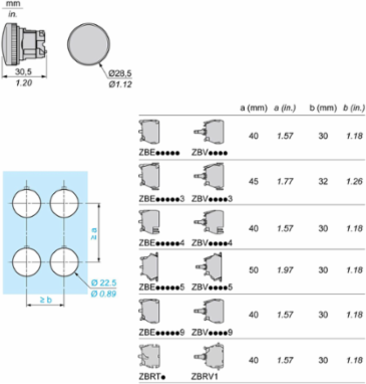

| Cad Overall Height | 29 mm |
| Cad Overall Depth | 31 mm |
|---|---|
| Cad Overall Width | 29 mm |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 1, no |
| Cap Operator Or Lens Color | green |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0035306432038834947, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.005001553398058252, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 44 % |
| Compatibility Code | ZB4 |
| Electrical Composition Code | P3 front mounting BA 9sP4 front mounting BA 9s and transformer |
| Group Of Product | lens fitted BA9s |
| Main Group | pilot light |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for pilot light |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Operator Add Information | with plain lens |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 85 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531909001 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Diameter | 22 mm, 22 mm |
| Certificate Agency | JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508, IEC 60947-5-5, JIS C8201-1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.06722475728155339 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.2026015776699029 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308026EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 20 % |
| Bezel Material | chromium plated metal |
| Device Short Name | ZB4 |
| Gcr Bridge | ZB4BVCUST01 |
| Head Type | standard |
| Operator Additional Information | with plain lens |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2308026EN |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | green |
| Package Weight(Lbs) | 24.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 20 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.278358531553398 |
| Environmental Disclosure | ENVPEP2308026EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | BA 9s |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308026EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308026EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for pilot light |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000223 |
|---|
| ETIM 9 | EC000223 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
