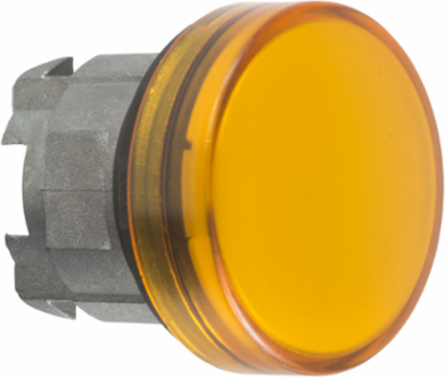

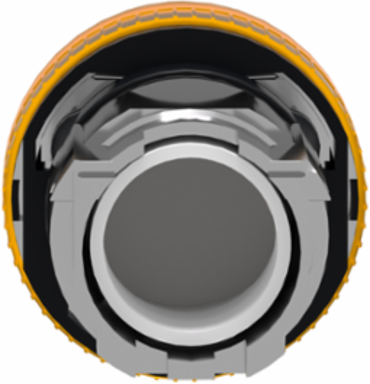

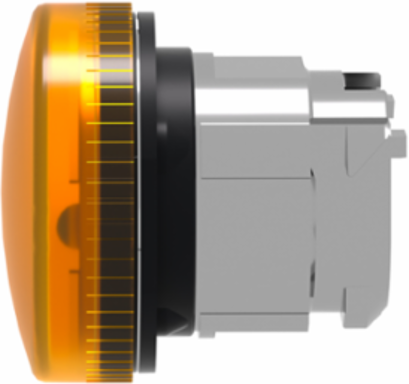

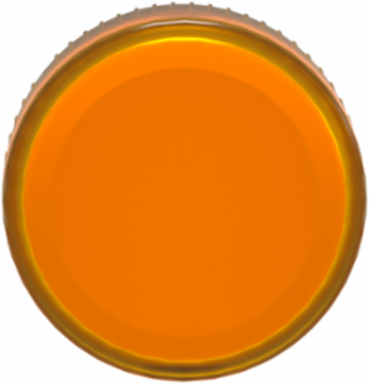

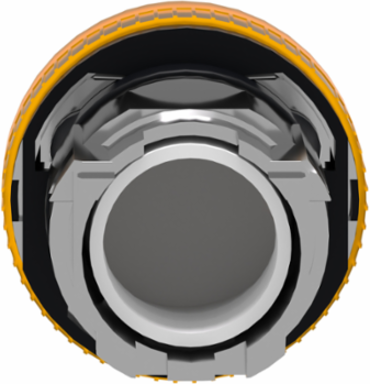

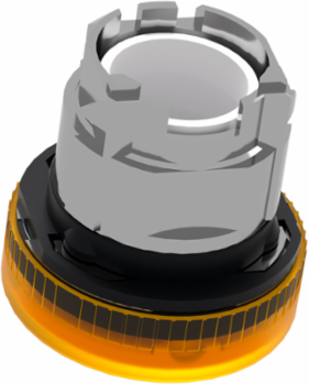

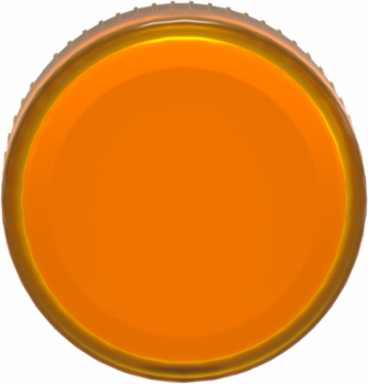

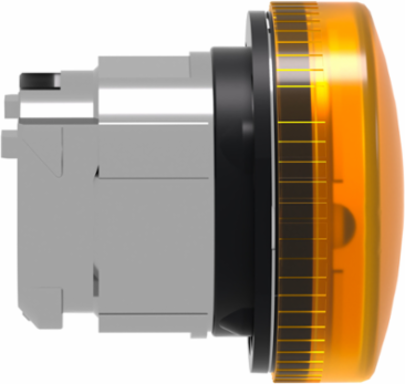

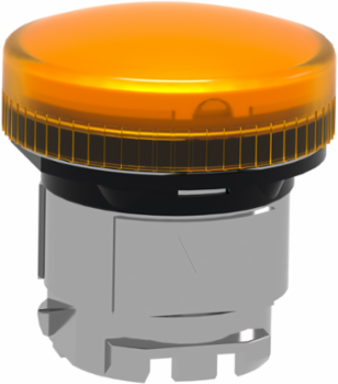

Schneider Electric ZB4BV05 Harmony XB4 Pilot Light Head, 22mm, Orange, IP66, BA9s Base
- MPN: ZB4BV05
- PPN: SCH-ZB4BV05
CAD
$8.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, plain lens orange head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- This round pilot light head is precision-engineered for standard $\varnothing$ 22mm industrial control panel cutouts, ensuring seamless, drop-in compatibility with your existing Harmony XB4 configurations. The design features a self-holding actuator system that stabilizes the component during front-mounting, eliminating misalignment issues and saving critical labor time during high-density terminal assembly.
- This item consists of the modular orange plain lens head and its chrome-plated metal bezel (basic element presentation) and requires a separate BA9s base lamp module, fixing collar, and bulb to form a complete operational pilot light unit.
- Engineered for rugged industrial environments, this pilot light head boasts IP66, IP67, IP69, and IP69K ratings, meaning it is entirely dust-tight and resistant to high-pressure washdown streams up to 1,015 psi (7,000,000 Pa) at elevated temperatures (55 C). It effectively safeguards internal electrical connections from moisture infiltration in heavy washdown applications, such as food processing or outdoor automation.
- This pilot light head is certified to meet stringent international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1 regulations, making it fully compliant for deployment in global industrial control panels. It guarantees that your machinery conforms to local electrical codes and passes rigorous field inspections without compliance bottlenecking.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States, ZZ |
|---|
Physical Attributes
| Cap Operator Or Lens Color | orange |
|---|---|

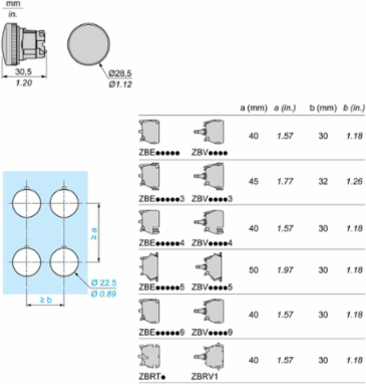

| Cad Overall Height | 29 mm |
| Cad Overall Depth | 31 mm |
|---|---|
| Cad Overall Width | 29 mm |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 1, no |
| Cap Operator Or Lens Color | orange |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0035306432038834947, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.005001553398058252, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 44 % |
| Compatibility Code | ZB4 |
| Electrical Composition Code | P3 front mounting BA 9sP4 front mounting BA 9s and transformer |
| Group Of Product | lens fitted BA9s |
| Main Group | pilot light |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for pilot light |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Operator Add Information | with plain lens |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 85 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531909001 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Diameter | 22 mm, 22 mm |
| Certificate Agency | IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-5-1, UL 508, IEC 60947-1, JIS C8201-1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.06722475728155339 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.2026015776699029 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308026EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 20 % |
| Bezel Material | chromium plated metal |
| Device Short Name | ZB4 |
| Gcr Bridge | ZB4BVCUST01 |
| Head Type | standard |
| Operator Additional Information | with plain lens |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2308026EN |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | orange |
| Package Weight(Lbs) | 23.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 20 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.278358531553398 |
| Environmental Disclosure | ENVPEP2308026EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | BA 9s |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308026EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308026EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for pilot light |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000223 |
|---|
| ETIM 9 | EC000223 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
