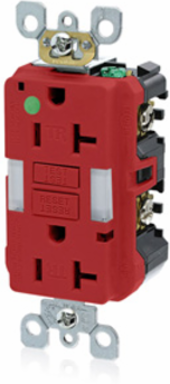

Leviton GFNL2-HGR 20 Amp SmartlockPro GFCI Hospital Grade Receptacle, Tamper-Resistant, NEMA 5-20R
Leviton GFNL2-HGR 20 Amp SmartlockPro GFCI Hospital Grade Receptacle, Tamper-Resistant, NEMA 5-20R
- MPN: GFNL2-HGR
- UPC: 078477723760
- PPN: LEV-GFNL2-HGR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$75.36/ EA
Description
SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Power Indication, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Red
Features
- Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Specifications
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- UL, CSA, NOM-ANCE
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polycarbonate
- Ground Clips
- Brass
- Line Contacts
- Brass
- Strap Material
- Galvanized Steel
- Terminal Screws
- Plated Steel
Face MaterialPBT
Grounding ScrewPlated Steel
Shutter MechanismDelrin® Acetal
Terminal ClampBrass
Mechanical Specifications
- Product ID
- Ratings are permenantly marked on device
- Terminal Accom.
- 14-10 AWG solid or stranded
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Trip LevelClass A, 5mA plus or minus 1mA
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Brand
- SmartlockPro
- Device Type
- Duplex Receptacle Outlet
- Function
- GFCI
- Tamper Resistant
- Yes
ColorRed
FeatureTamper-Resistant|Power Indication
GradeHeavy-Duty Hospital Grade
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Pole
- 2
- Voltage
- 125 VAC
GroundingSelf-Grounding
Short Circuit Current Rating10kA
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
