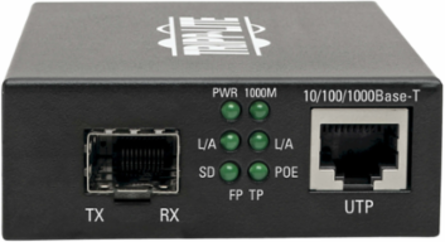

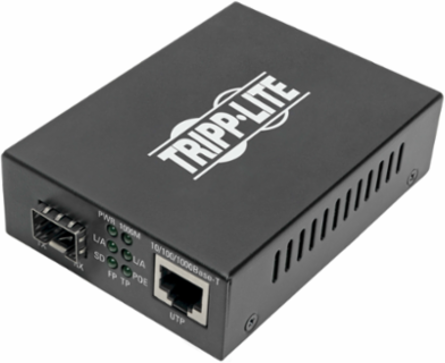

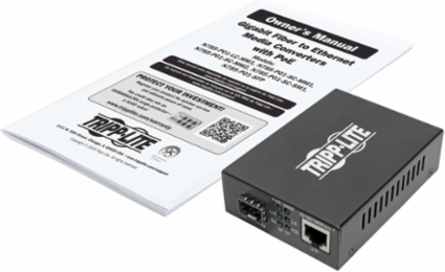

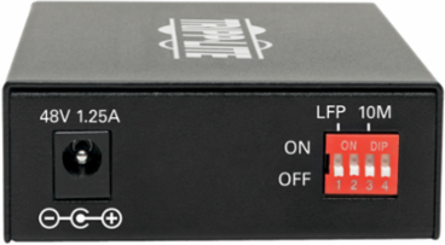

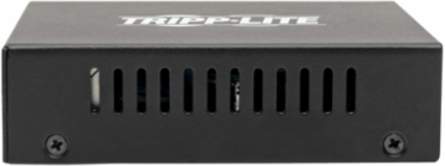

Tripp Lite N785-P01-SFP Gigabit SFP Fiber to Ethernet Media Converter, POE+, 10/100/1000 Mbps
- MPN: N785-P01-SFP
- UPC: 037332236937
- PPN: TRP-N785-P01-SFP
CAD
$319.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gigabit SFP Fiber to Ethernet Media Converter, POE+, 10/100/1000 Mbps
Features
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Customizable SFP port supports both 1G single- and multimode transceivers
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately)
- Customizable Media Converter Extends Power and Data to a PoE+ Device via Fiber Cable
- Works in Tandem with Tripp Lite's N785-Series (Non-PoE) Media Converters
- Supports Power over Ethernet to Save You Money and Give You More Installation Choices
- Supports Auto-Sensing of Network Speed and Other Advanced Functions
- Completely Plug-and-Play with No Additional Software Required for Connection
Documentation & Downloads
Specifications
Additional
- Network Speed
- 10/100/1000 Mbps
- Power Input
- 100-240V, 50/60 Hz, 1.5A
- Dimensions
- 0.98 x 3.74 x 2.76 in
- Power Connector
- NEMA 5-15P North America plug
- Fiber Port
- SFP (FEMALE)
- Operating Temperature Range
- -4 to 140 F (-20 to 60 C)
- Relative Humidity
- 5% to 90% RH, Non-Condensing
- Color
- Black
Duplex ModeFull- and half-duplex operation
Power Output48 VDC, 1.25A
Weight0.44 lbs
Ethernet PortRJ45 (FEMALE) auto MDI/MDIX
SFP Port Compatibility1G singlemode and multimode transceivers
Storage Temperature Range-4 to 158 F (-20 to 70 C)
ComplianceCCC, FCC, PSE, UL, cUL
