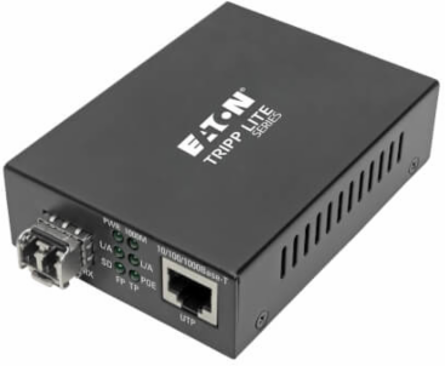

Tripp Lite N785INTPLCMM1 Gigabit Multimode Fiber to Ethernet Media Converter, PoE+, LC, International Power, 850 nm, 550 m
- MPN: N785INTPLCMM1
- UPC: 037332273055
- PPN: TRP-N785-INT-PLCMM1
CAD
$353.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)
Features
- External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)

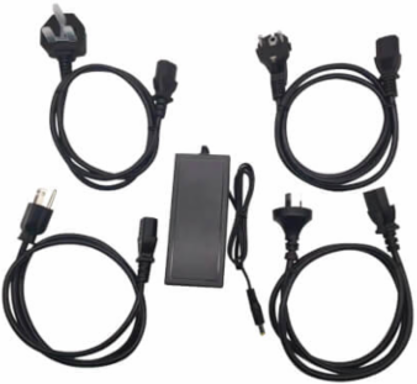

- (4) International power cables (North America, Europe, U.K., Australia)
Documentation & Downloads
Specifications
Dimensions
- Network Ports
- LC (FEMALE); RJ45 (FEMALE)
- Mode Type
- Multimode
- Ports
- 1 (RJ45 port supports 10/100/1000 Mbps up to 550m)
- AC Power Adapter Plug
- AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America
- AC Power Adapter Cord Length
- 3.61 ft

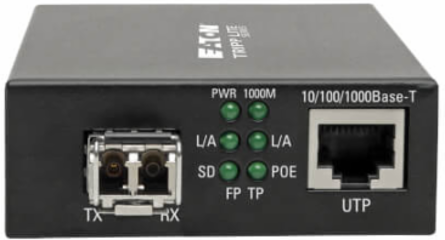

- LED Indicators
- PWR (Power LED), 1000M (UTP RJ45 Port speed LED), PoE (Power Over Ethernet LED), L/A "FP" (Fiber Port Activity Status LED), L/A "TP" (UTP RJ45 Port Activity Status LED), SD (Fiber Port Link Status LED)
Host ConnectorRJ45 (FEMALE)
Optical PortLC
Power Source TypeAC Adapter with detachable power cord
AC AdapterInput: 100–240V, 50/60 Hz, 1.5A; Output: 48V 1.25A
Unit Dimensions0.980 x 2.760 x 3.740 in
Material
- Color
- Black
Compliance
- Product Warranty Period
- 2-year limited warranty
Reference
- Product Type
- LC Gigabit Multimode Media Converter
Power SourceUnit (Included)
Performance
- PoE Type
- Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at)
- Network Ports Details
- 10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
- Wavelength
- 850 nm
- Working Mode
- Full/Half Duplex
- Storage Temperature Range
- -4° to 158°F (-20° to 70°C)
PoE Power Budget30 W
Data Transfer Rate1 Gbps; 10 Mbps; 100 Mbps
Transmission Distance550 m
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity5% to 90% RH, Non-Condensing
