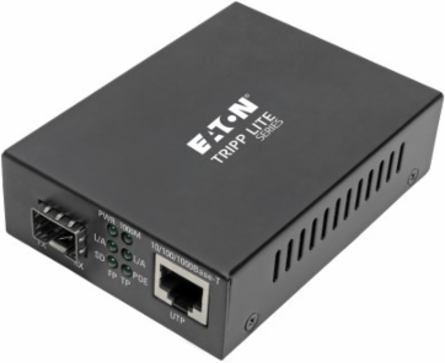

Tripp Lite N785INTPSFP Gigabit SFP Fiber to Ethernet Media Converter, PoE+, International Power

MPN: N785INTPSFP
UPC: 037332273031
PPN: TRP-N785-INT-PSFP

$258.79

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Gigabit SFP Fiber to Ethernet Media Converter, POE+, International Power Cables, 10/100/1000 Mbps

Features

External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)

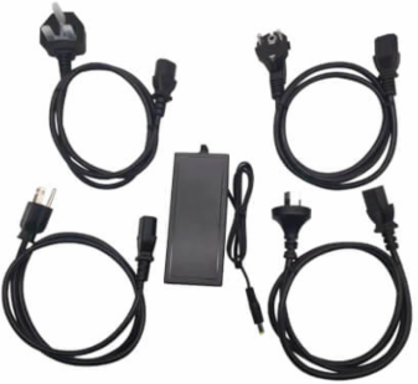

(4) International power cables (North America, Europe, U.K., Australia)

Documentation & Downloads

Specifications

Dimensions

Mode Type	Multimode; Singlemode
AC Power Adapter Plug	AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America
AC Power Adapter Cord Length	3.61 ft
Unit Dimensions	0.980 x 2.760 x 3.740 in

Power Source Type	AC Adapter with detachable power cord
AC Adapter	Input: 100–240V, 50/60 Hz, 1.5A; Output: 48V 1.25A
DC Barrel Plug	OD: 5.5 x 2.1 x 11mm, Positive Pin, Negative Sleeve

Material

Color	Black

Compliance

IEEE Standards Supported	802.3; 802.3ab; 802.3af; 802.3at; 802.3u; 802.3z

Warranty Details	2-year limited warranty

Reference

Product Type	Fiber to Ethernet

Performance

PoE Type	Type 2 PoE+ (30W, IEEE 802.3at)
Data Transfer Rate	1 Gbps; 10 Mbps; 100 Mbps
Working Mode	Full/Half Duplex
Storage Temperature Range	-4° to 158°F (-20° to 70°C)

Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Transmission Distance	Depends on transceiver used
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Relative Humidity	5% to 90% RH, Non-Condensing
