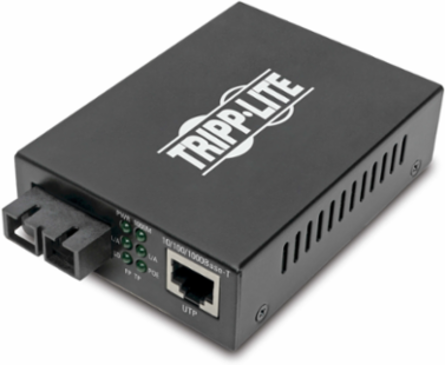

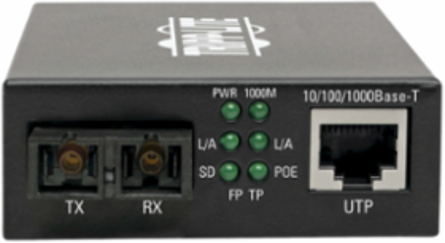

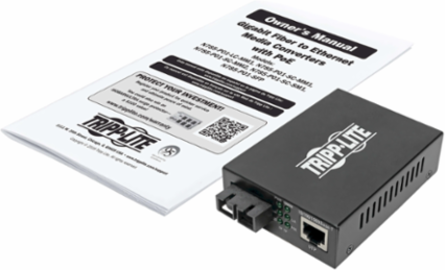

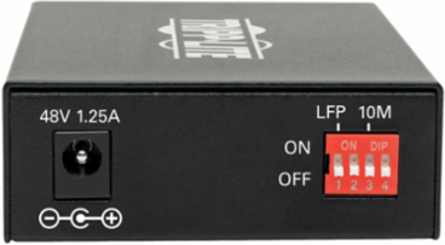

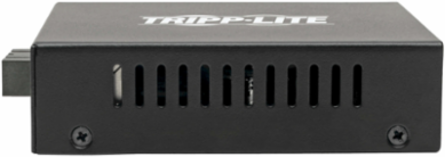

Tripp Lite N785-P01-SC-SM1 Gigabit Singlemode Fiber to Ethernet Media Converter, 20 km, 1310 nm, PoE+
- MPN: N785-P01-SC-SM1
- UPC: 037332236944
- PPN: TRP-N785-P01-SC-SM1
CAD
$382.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gigabit Singlemode Fiber to Ethernet Media Converter, 20 km, 1310 nm, PoE+
Features
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Supports singlemode fiber optic cable with SC connectors up to 20 km (12.4 mi.)
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Works in tandem with Tripp Lite N785-INT-SC-SM (sold separately)
- Extends Power and Data to a PoE+ Device up to 20 Kilometers via SC Singlemode Fiber Cable
- Supports Power over Ethernet to Save You Money and Give You More Installation Choices
- Supports Auto-Sensing of Network Speed and Other Advanced Functions
- Works in Tandem with Tripp Lite’s N785-INT-SC-SM Media Converter
- Completely Plug-and-Play with No Additional Software Required for Connection
Documentation & Downloads
Specifications
Additional
- Transmission Distance
- 20 km
- Power Input
- 100-240V~50/60Hz, 1.5A
- Network Speed
- 1 Gbps
- Fiber Type
- Singlemode
- RJ45 Connector
- RJ45 (Female) Auto-MDI/MDIX
- Unit Weight
- 0.44 lbs
- Storage Temperature Range
- -4 to 158 F (-20 to 70 C)
- Certifications
- CCC, FCC, PSE, UL, cUL
- External Power Supply Plug
- NEMA 5-15P North America
Wavelength1310 nm
Power Output48 V, 1.25 A
Duplex OperationFull/Half Duplex
Fiber ConnectorSC Duplex (Female)
Unit Dimensions0.98 x 3.74 x 2.76 in
Operating Temperature Range-4 to 140 F (-20 to 60 C)
Relative Humidity5% to 90% RH, Non-Condensing
External Power Supply Cord Length3.6 ft
ColorBlack
