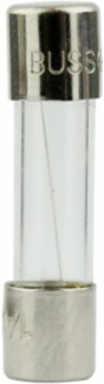

Bussmann GMA-1.6-R GMA 1.6A BUSS FUSE
- MPN: GMA-1.6-R
- UPC: 051712647823
- PPN: BUS-GMA-1.6-R
CAD
$1.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
GMA 1.6A BUSS FUSE
Features
- This fuse features the industry-standard 5 mm times 20 mm physical footprint, guaranteeing an exact drop-in fit for standard North American and metric cartridge fuse blocks, clips, and panel-mount holders. This universal sizing saves valuable troubleshooting time during field maintenance, eliminating the common frustration of ordering the wrong physical format for compact electronic devices, power strips, or specialized control circuits.
- The Eaton Bussmann GMA-1.6-R is engineered as a highly responsive, fast-acting cartridge fuse designed to open almost instantly when encountering overcurrent conditions. By reacting within milliseconds to overload spikes, it shields delicate semiconductor components, microcontrollers, and complex printed circuit boards (PCBs) from destructive thermal damage before the heat can propagate through your electronic hardware.
- Optimized for precise low-voltage circuit protection, this glass tube fuse carries a true 1.6 A current rating and is rated for operational safety up to 250 VAC. Operating with a maximum interrupt rating (breaking capacity) of 100 A at 250 VAC and a low nominal DC cold resistance of 0.08 , it allows your equipment to run efficiently with minimal voltage drop while providing a dependable baseline for system safety.
- Constructed with a clear, heavy-duty glass housing and durable nickel-plated brass end caps, this cartridge design allows for immediate visual inspection to see if the internal element has melted or cleared. This transparency simplifies diagnostic checkups for field technicians and benchtop repair professionals, allowing you to instantly identify a blown fuse without needing to pull out a digital multimeter to run a continuity test.
Documentation & Downloads
Specifications
Additional
- Amperage
- 1.6 A
- Interrupting Rating
- 100 A (250 V AC), 10,000 (125 V AC)
- Typical DC Cold Resistance
- 0.080
- Size
- 5 mm x 20 mm
- Compliance
- UL Listed, CSA Certified, PSE Approved
Voltage250 V
Maximum Voltage Drop260 mV
Typical Pre-Arc I2t2.0
MaterialGlass tube, nickel-plated brass endcap
