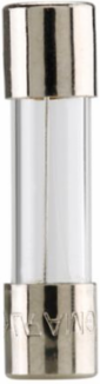

Bussmann GMA-3.5-R GMA 3.5A BUSS FUSE
- MPN: GMA-3.5-R
- UPC: 051712647939
- PPN: BUS-GMA-3.5-R
CAD
$1.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
GMA 3.5A BUSS FUSE
Features
- Engineered to the universal 5 mm times 20 mm metric standard, this compact cylindrical cartridge fuse drops seamlessly into standard board-mount clips, panel holders, and inline blocks. It serves as an exact dimensional swap for blown subminiature fuses in consumer electronics, power supplies, and testing equipment, eliminating installation troubleshooting or physical alignment issues.
- Designed with an ultra-responsive, fast-acting (fast-blow) clearing mechanism, this fuse is built to sacrifice itself within seconds of encountering a major overload. It interrupts harmful current spikes at 200% of its rating in under two minutes, mitigating severe downstream thermal stress and saving sensitive, expensive semiconductors or delicate micro-logic boards from catastrophic failure.
- With a calibrated current rating of 3.5 A and an AC voltage rating up to 125 V, this electronic component precisely manages standard domestic and commercial equipment currents. It carries its full rated load continuously without nuisance blowing, providing a reliable baseline for low-voltage power distribution networks and small appliance circuitry.
- Featuring an impressive interrupting rating (AIC) of 10,000 A at 125 VAC, this heavy-duty glass tube safely stops high-energy short-circuit faults right at the source. This high breaking capacity prevents the fuse body from exploding, fracturing, or arcing dangerously during severe electrical anomalies, shielding your surrounding electronics block from soot and debris.
- Constructed using a high-clarity glass tube body paired with nickel-plated brass endcaps, this ferrule terminal design ensures exceptional long-term electrical conductivity and corrosion resistance. The transparent glass cylinder delivers an immediate visual confirmation of a blown internal element, expediting diagnostic field testing and minimizing equipment downtime.
Documentation & Downloads
Specifications
Additional
- Amperage
- 3.5 A
- Fuse Type
- Fast-acting
- Voltage
- 125 V
- DC Cold Resistance
- 0.030
- Maximum Voltage Drop
- 210 mV
Size5 mm x 20 mm
MaterialGlass tube, nickel-plated brass endcap
Interrupting Rating10,000 A
Typical Pre-Arc I2t13
ComplianceUL Listed, CSA Certified, PSE Approved, RoHS Compliant
