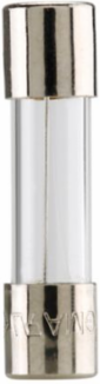

Bussmann GMA-2.5-R GMA 2.5A BUSS FUSE
- MPN: GMA-2.5-R
- UPC: 051712647885
- PPN: BUS-GMA-2.5-R
CAD
$1.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
GMA 2.5A BUSS FUSE
Features
- Engineered with a precise 2.5 Amp current rating and a 250 VAC voltage capacity, this glass tube fuse is optimized for specialized electronic circuits. It delivers accurate overcurrent mitigation to prevent power surges from destroying your delicate instrumentation, power supplies, or custom control setups.
- his is a true fast-acting (fast-blow) single-element fuse, engineered to break the circuit rapidly within a maximum response time of 60 minutes at 135% overload and under 2 minutes at 200%. Unlike slow-blow alternatives, it provides immediate isolation the moment a fault condition occurs, safeguarding sensitive microelectronics before devastating thermal damage can spread.
- Adhering to the standard 5mm x 20mm physical footprint, this cylindrical cartridge fuse offers standard form-factor compatibility. The lead-free ferrule terminals fit cleanly into any standard 5x20mm PCB clips, panel-mount fuse blocks, or inline fuse holders without requiring mechanical modifications.
- This electronic fuse features a dual interrupting rating, safely clearing faults up to 100 Amps at 250 VAC and climbing to a robust 10,000 Amps at 125 VAC. This low-breaking capacity configuration limits extreme arc energy during a short circuit, preventing physical component rupture and keeping your surrounding board clean and safe.
Documentation & Downloads
Specifications
Additional
- Amp Rating
- 2.5 A
- Interrupting Rating
- 100 A (250 V AC), 10,000 A (125 V AC)
- Size
- 5 mm x 20 mm
- Compliance
- UL Listed, UL Recognized, CSA Certified, PSE Approved
Voltage Rating250 V
Fuse TypeFast-acting glass tube
MaterialGlass tube, nickel-plated brass endcap
SeriesGMA
