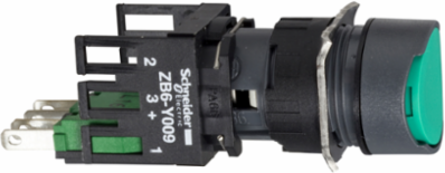

Schneider Electric XB6AA31B Harmony XB6 Green Flush Pushbutton 16mm Spring Return 1NO
- MPN: XB6AA31B
- PPN: SCH-XB6AA31B
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered by Schneider Electric, this Harmony XB6 green flush pushbutton is designed for seamless integration into automation and control systems. With a compact 16mm diameter, it features a spring return mechanism for added convenience and reliability. The one normally open (1NO) contact configuration makes it ideal for a variety of applications where quick actuation is essential. This pushbutton not only provides visual confirmation with its vibrant green color but also ensures a responsive and precise operation, making it a valuable component in any control panel setup.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15, B300; 1.5 A 240 V AC-15, B300; 0.1 A 250 V DC-13, R300; 0.22 A 125 V DC-13, R300 EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Mechanical Durability
- 2,000,000 cycles
- Short-Circuit Protection
- 6 A cartridge fuse gG
- CAD Overall Width
- 18 mm (0.71 in)
- CAD Overall Depth
- 57 mm (2.24 in)
- Operating Force
- 3.5 N NO changing electrical state
- Contacts Type and Composition
- 1 NO
- Operator Profile
- Green flush, unmarked
- Bezel Material
- Plastic
- IP Degree Of Protection
- IP65 IEC 60529
- Standards
- EN/IEC 60947-5-5; EN/IEC 60947-1; JIS C 4520; EN/IEC 60947-5-1; UL 508; JIS C 852; CSA C22.2 No 14
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
Rated Insulation Voltage250 V EN/IEC 60947-1
Contact OperationSlow-break
Electrical Durability1,000,000 cycles AC-15 230 V; 1,000,000 cycles DC-13 230 V EN/IEC 60947-5-1 appendix C
Mounting Diameter16 mm (0.63 in)
CAD Overall Height18 mm (0.71 in)
Operating Travel1 mm NO changing electrical state, 3.5 mm total travel
Connections - TerminalsFaston connectors 2.8 x 0.5 mm
Contacts MaterialSilver alloy (Ag/Ni)
Type of OperatorSpring return
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree Of ProtectionNEMA 13, 4, 4X UL 50; NEMA 13, 4, 4X CSA C22.2 No 94
Product CertificationsGOST; CCC; UL; CSA
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
