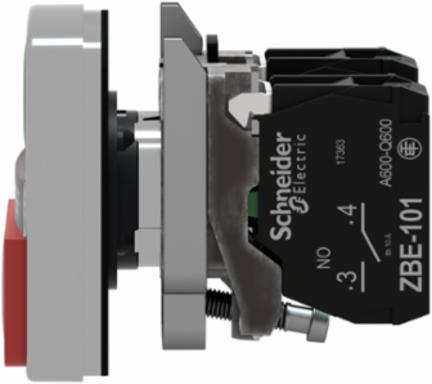

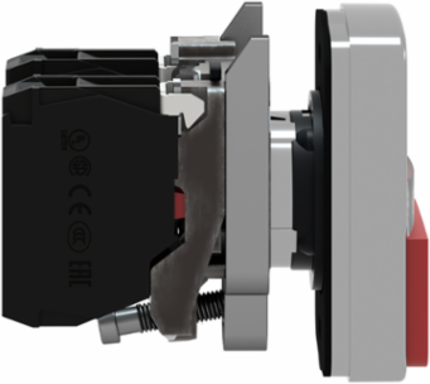

Schneider Electric XB4BW73731G5 Harmony XB4 Illuminated Double-Head Push Button, 22mm, IP67, 120V AC
Schneider Electric XB4BW73731G5 Harmony XB4 Illuminated Double-Head Push Button, 22mm, IP67, 120V AC
- MPN: XB4BW73731G5
- PPN: SCH-XB4BW73731G5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$124.37/ EA
Description

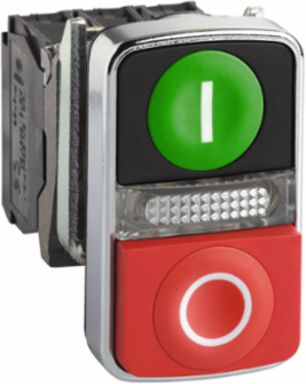

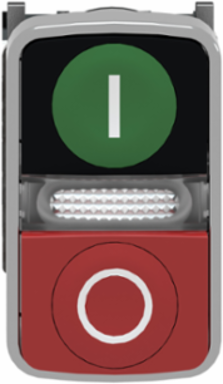

This Harmony XB4 illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to illuminated clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- GL || BV || DNV || LROS (Lloyds register of shipping) || UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP69K IEC 60529 || IP69 IEC 60529
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Electrical Shock Protection Classclass I IEC 60536
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Contacts Usage
- standard contacts
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- Type Of Operator
- spring return
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Net Weight
- 0.13 kg
- Current Consumption
- 14 mA
- Operator Profile
- 1 flush - 1 projecting push-buttons - 1 central pilot light
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Contacts Type And Composition
- 1 NO + 1 NC
- Surge Withstand
- 1 kV IEC 61000-4-5
- Signalling Type
- steady
- Contact Operation
- slow-break
- Mechanical Durability
- 1000000 cycles
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Bulb Base
- integral LED
Operating Force3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Operators Descriptiongreen ''I'' - red ''O''
Shape Of Signaling Unit Headrectangular
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Fixing Collar Materialzamak
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m

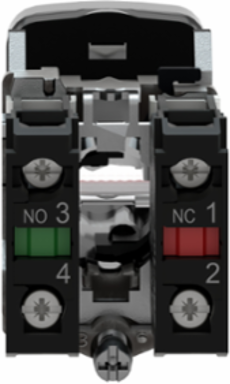

Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Service Life100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Operator Profilegreen flush, I white) || red projecting, O white)
Compatibility CodeXB4
Tightening Torque0.8-1.2 N.m IEC 60947-1
[Us] Rated Supply Voltage110...120 V AC 50/60 Hz
Specifications
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 22 mm
- Colour Of Marking
- white marking when green, red or black caps || black marking when white caps
- Device Presentation
- complete product
- Light Source Colour
- white
Light Sourceprotected LED
Product Or Component Typeilluminated double-headed push-button
Head Typestandard
Bezel Materialchromium plated metal
Device Short NameXB4
