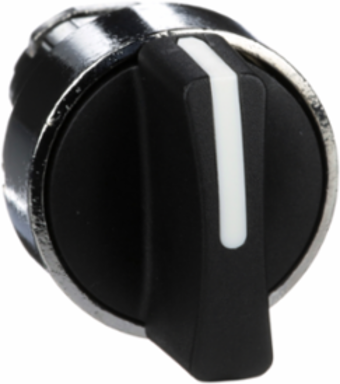

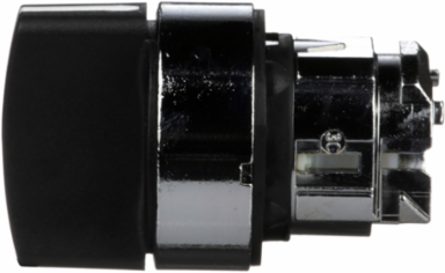

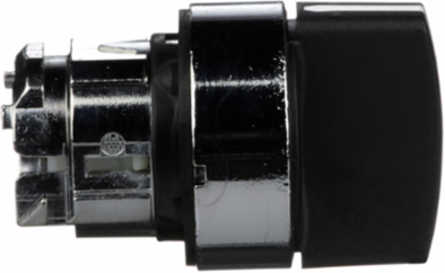

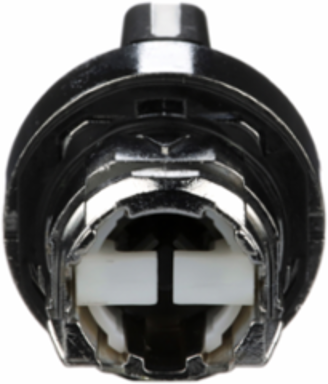

Schneider Electric ZB4BD5 Harmony XB4 Selector Switch Head, 22mm, 3 Positions, Spring Return
- MPN: ZB4BD5
- PPN: SCH-ZB4BD5
CAD
$31.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The Schneider ZB4BD5 is a high-performance, 22mm 3-position selector switch head from the Harmony XB4 metal range. It is the "business end" of a control switch, designed to be mounted on a machine control panel or pendant station to allow operators to choose between three distinct functional states (such as "Hand-Off-Auto").
- This specific model features a spring return to center from both positions. This means the handle will stay in the left or right position only as long as the operator is physically holding it; once released, it automatically snaps back to the vertical (center) position. This is a critical safety feature for "jogging" motors or momentary command signals.
- The ZB4BD5 features a standard black stay-put handle with a white indicator line for high visibility. The handle is ergonomically shaped to provide a firm grip even for operators wearing industrial work gloves, and its smooth mechanical action provides a tactile "click" so the user can feel the switch engaging.
- As part of the Harmony XB4 family, this operator features a chromium-plated metal bezel. This construction is significantly more durable than plastic alternatives, offering superior resistance to chemical cleaners, heavy impacts, and extreme vibrations found in automotive, mining, and heavy manufacturing environments.
- The ZB4BD5 is built for extreme environments, boasting IP66, IP67, IP69, and IP69K ratings. It is also rated for NEMA 4, 4X, and 13, meaning it is fully protected against high-pressure water jets, dust, and oil seepage. This makes it ideal for food processing plants and outdoor machinery.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States |
|---|
Physical Attributes

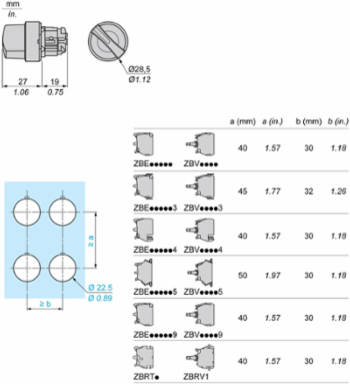

| Cad Overall Depth | 44 mm |
|---|---|
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
|---|---|
| Cap Operator Or Lens Color | black |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Electrical Composition Code | C3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mounting |
| Certificate Agency | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0459398383 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.3 kg CO2 eq., 0.2662582233 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308005EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 21 % |
| Compatibility Code | ZB4 |
| Group Of Product | non illuminated |
| Main Group | selector switch |
| Mounting Diameter | 22.5 mm |
| Operator Profile | black standard handle |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | No |
| Type Of Operator | to centre spring return |
| Cap Operator Or Lens Color | black |
| Pep Code | ENVPEP2308005EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| Operator Pos Information | 3 positions +/- 45° |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0052307538, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0064685381, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 66 % |
| Device Short Name | ZB4 |
| Head Type | standard |
| Mechanical Durability | 1000000 cycles |
| Operator Position Information | 3 positions +/- 45° |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for selector switch |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type Of Operator 3 Return | to centre |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | black |
| Package Weight(Lbs) | 44.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP67 IEC 60529, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 21 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.3238973535 |
| Environmental Disclosure | ENVPEP2308005EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308005EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for selector switch |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000222 |
|---|
| ETIM 9 | EC000222 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
