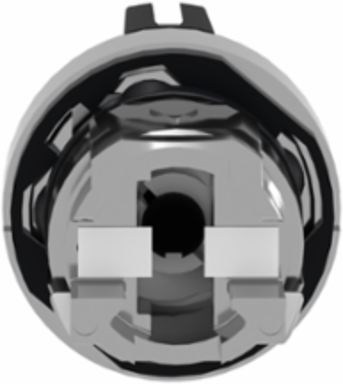

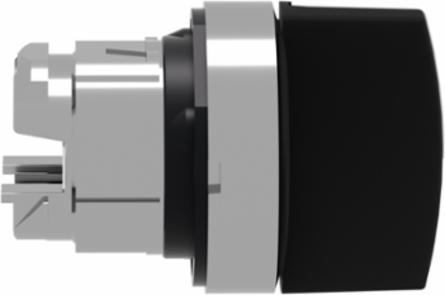

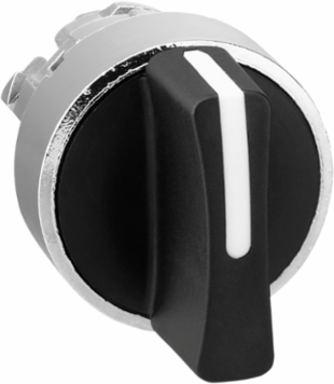

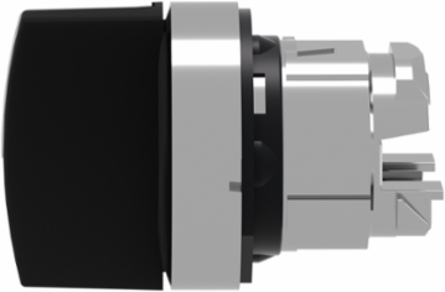

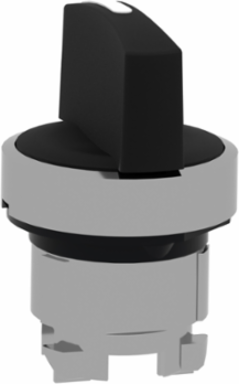

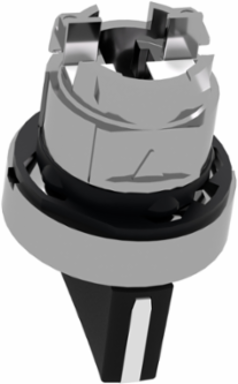

Schneider Electric ZB4BD7 Harmony XB4 Metal Selector Switch Head, 22mm, 3 Positions, Spring Return
- MPN: ZB4BD7
- PPN: SCH-ZB4BD7
CAD
$31.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- This modular selector switch head features a 3-position, $\pm45$-degree throw layout with a mixed actuation profile. It utilizes a spring-return mechanism from the left position back to the center, combined with a maintained (stay-put) latching action in the right position. This distinct asymmetric setup allows plant engineers to use the left side for momentary jogging, safety overrides, or testing inputs, while using the right side to lock the machinery into continuous run-state production.

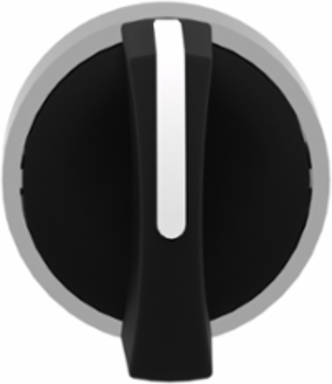

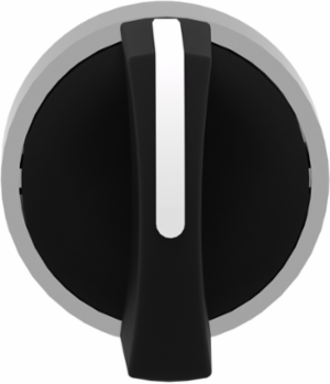

- The unit is equipped with an integrated, standard black pointer handle that provides crisp mechanical detents and highly legible positioning alignment. Designed for universal operation, the high-contrast handle profile offers a secure grip for technicians on active shop floors, ensuring deliberate and reliable control changes even when operators are wearing heavy canvas or high-voltage protective gloves.
- This product is classified strictly as a modular operator head and does not arrive pre-assembled with rear contacts or electrical blocks. To deploy this switch onto a panel door, it must be paired with a standard Harmony metal fixing collar (ZB4BZ009) and the appropriate configuration of Harmony ZBE single or double electrical contact blocks depending on your automated logic needs.
- Engineered to meet rigorous IP67, IP69, and IP69K ratings, along with UL/NEMA Type 4X and 13 metrics, this oil-tight and waterproof head withstands high-pressure, high-temperature sanitizing jets. It completely bars the entry of splashing water, chemical detergents, cutting oils, and fine metallic dust, ensuring reliable field operation across harsh processing zones.
- Designed for high-frequency industrial use, this momentary-maintained selector head boasts an exceptional mechanical durability rating of 1,000,000 continuous operating cycles. Combined with a wide functional temperature envelope ranging from -40°C to 70°C, it ensures predictable, long-term tactile responsiveness while minimizing unexpected component replacement downtime.
Documentation & Downloads
Specifications
Additional
- Operator Positions
- 3 positions ±45°
- Mechanical Durability
- 1,000,000 cycles
- Vibration Resistance
- 5 gn (2–500 Hz) IEC 60068-2-6
- Ambient Temperature Range for Operation
- -40 to 70 °C

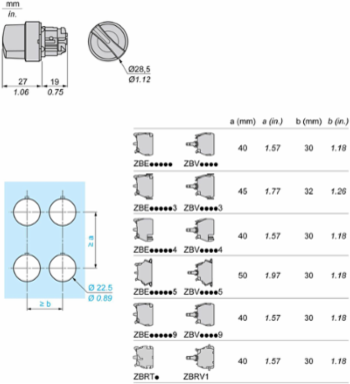

- Mounting Diameter
- 22 mm
- Overall Width
- 29 mm
- Head Shape
- Round
- Bezel Material
- Chromium plated metal
- IP Degree of Protection
- IP67, IP69, IP69K IEC 60529
- IK Degree of Protection
- IK06 IEC 50102
- RoHS Compliance
- Pro-active compliance, exemption: Yes
- Mercury Free
- Yes
- Protective Treatment
- TH
- Environmental Disclosure
- ENVPEP1808008EN
- Device Short Name
- ZB4
Overvoltage CategoryClass I IEC 60536
Shock Resistance30 gn (18 ms), 50 gn (11 ms) half sine wave IEC 60068-2-27
Resistance to High Pressure Washer7,000,000 Pa (1015 psi) at 55 °C 0.1 m
Ambient Temperature Range for Storage-40 to 70 °C
Overall Depth44 mm
Overall Height29 mm
Operator ProfileBlack standard handle
Type of OperatorLeft to centre spring return
NEMA Degree of ProtectionNEMA 13, NEMA 4X
Product CertificationsCSA, Lloyds Register of Shipping, DNV, UL listed, GL, BV
Reach ComplianceFree of Substances of Very High Concern above threshold
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI1808008EN
Warranty18 months
Product RangeHarmony XB4
