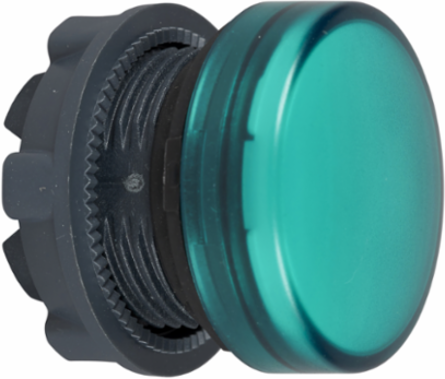

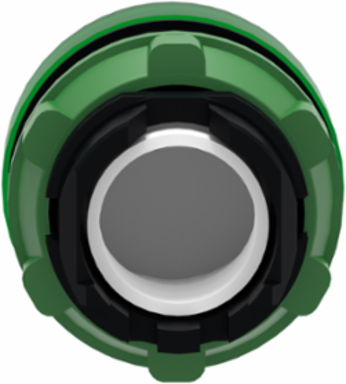

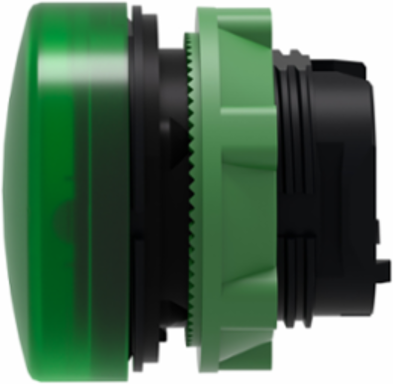

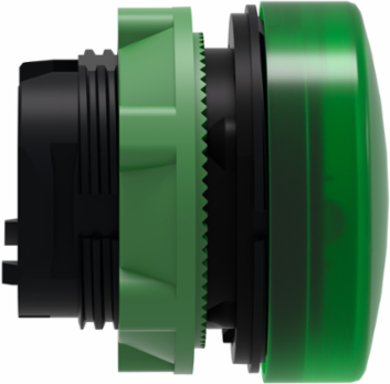

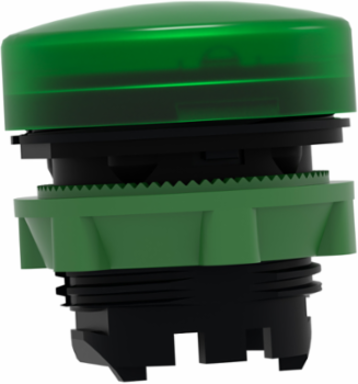

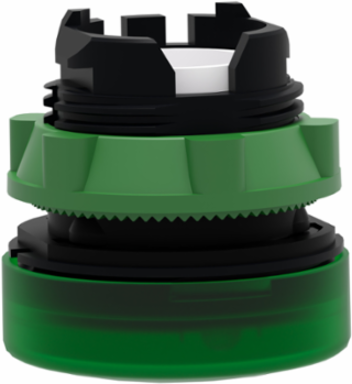

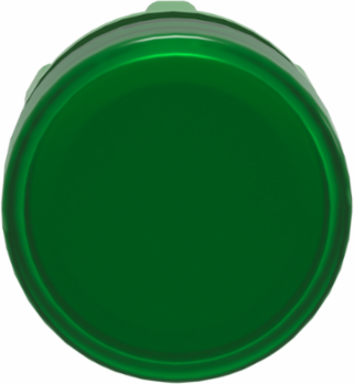

Schneider Electric ZB5AV03 Harmony XB5 Green Pilot Light Head, 22mm, IP66, BA9s Base
- MPN: ZB5AV03
- PPN: SCH-ZB5AV03
CAD
$8.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5 plain lens green head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Cap Operator Or Lens Color
- green

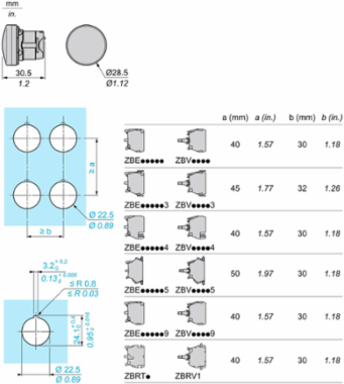

- Cad Overall Height
- 29 mm
Cad Overall Depth31 mm
Cad Overall Width29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Mounting Diameter
- 22 mm, 22 mm
- Certificate Agency
- IEC 60947-5-4, JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-5, UL 508, JIS C8201-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0260220833
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.11445
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308027EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 16 %
- Compatibility Code
- ZB5
- Gcr Bridge
- ZB5AVCUST01
- Head Type
- standard
- Operator Additional Information
- with plain lens
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Station Name
- XALD 1...5 cut-outsXALK 2...5 cut-outs
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Operator Add Information
- with plain lens
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pilot light uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- green
- Package Weight(Lbs)
- 16.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeP3 front mounting BA 9sP4 front mounting BA 9s and transformer, PF2 front mounting BA 9s
Cap Operator Or Lens Colorgreen
Carbon Footprint Of The Distribution Phase [A4]0.0019615, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00582875, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Bezel Materialdark grey plastic
Device Short NameZB5
Group Of Productlens fitted BA9s
Main Grouppilot light
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for pilot light
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2308027EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %22
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531909001
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.1482623333
- Environmental Disclosure
- ENVPEP2308027EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- BA 9s
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308027EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for pilot light
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000223
ETIM 9EC000223
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
