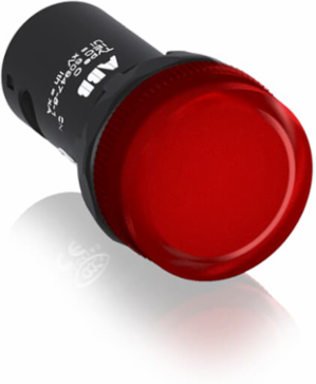

ABB CL-513R PILOT LIGHT CL-513R 110-130V a.c.
- MPN: CL-513R
- PPN: ABB-CL-513R
- UNSPSC: 39121500
CAD
$12.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 110-130V AC
Specifications
Dimensions
| Product Net Width | 0.03 m |
|---|---|
| Product Net Depth / Length | 0.055 m |
| Product Net Height | 0.03 m |
|---|---|
| Product Net Weight | 0.022 kg |
Technical
| Ambient Air Temperature | Operation -25 ... +70 °CStorage -30 ... +85 °C |
|---|---|
| Actuator Type | Pilot light head |
| Lamp Type | LED 110-130V AC |
| Enclosure Type NEMA | Type1Type12Type13Type3RType4Type4X |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm² |
| Terminal Type | Screw Terminals |
| Wire Stripping Length | 8 mmControl Circuit 8 mm |
| Color | Red |
|---|---|
| Illumination | Illuminated |
| Degree of Protection | Front IP66Front IP67Front IP69KTerminals IP20 |
| Pollution Degree | 3 |
| Rated Operational Voltage | 110 ... 130 V AC |
| Connection Type | Screw Clamp |
| Tightening Torque | 0.9 N·mControl Circuit 0.9 N·m |
Classifications
| Object Classification Code | E |
|---|---|
| E-Number (Sweden) | 3711370 |
| eClass | V11.0 : 27371223 |
|---|
Environmental
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
|---|---|
| RoHS Information | 1SFC151012D0202 |
| WEEE B2C / B2B | Business To Business |
| RoHS Date | 0626 5 |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 18...14 AWG2x 18...14 AWG |
|---|
Ordering
| Minimum Order Quantity | 10 piece |
|---|
| Customs Tariff Number | 85369001 |
|---|
