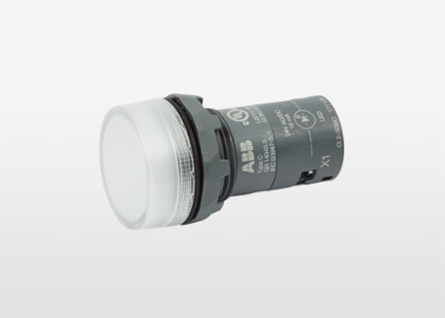

ABB CL-502W PILOT LIGHT CL-502W 24V a.c./d.c.

PILOT LIGHT CL-502W 24V a.c./d.c.

ABB CL-502W PILOT LIGHT CL-502W 24V a.c./d.c.

MPN: CL-502W
PPN: ABB-CL-502W
UNSPSC: 39121500

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$12.60/ EA

Loading add to cart quantity...

Description

Compact Pilot Light - Pilot light head - White - Illuminated - Lamptype: LED 24V AC / DC

Specifications

Dimensions

Product Net Width: 0.03 m

Product Net Depth / Length: 0.055 m

Product Net Height0.03 m

Product Net Weight0.022 kg

Technical

Ambient Air Temperature: Operation -25 ... +70 °CStorage -30 ... +85 °C

Actuator Type: Pilot light head

Lamp Type: LED 24V AC / DC

Enclosure Type NEMA: Type1Type12Type13Type3RType4Type4X

Rated Frequency (f): Supply Circuit 50 / 60 Hz

Connecting Capacity: Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm²

Terminal Type: Screw Terminals

Wire Stripping Length: 8 mmControl Circuit 8 mm

ColorWhite

IlluminationIlluminated

Degree of ProtectionFront IP66Front IP67Front IP69KTerminals IP20

Pollution Degree3

Rated Operational Voltage24 V AC/DC

Connection TypeScrew Clamp

Tightening Torque0.9 N·mControl Circuit 0.9 N·m

Classifications

Object Classification Code: E

E-Number (Sweden): 3711348

eClassV11.0 : 27371223

Environmental

RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

RoHS Information: 1SFC151012D0202

WEEE B2C / B2B: Business To Business

RoHS Date0626 5

WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Technical UL/CSA

Connecting Capacity UL/CSA: 1x 18...14 AWG2x 18...14 AWG

Ordering

Minimum Order Quantity: 10 piece

Customs Tariff Number85369001
