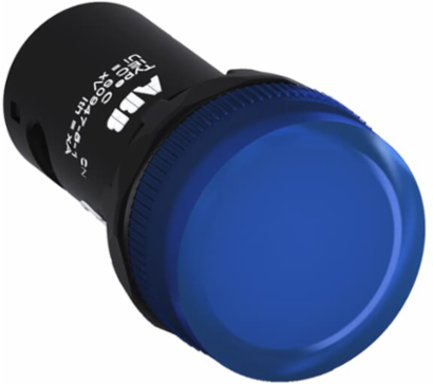

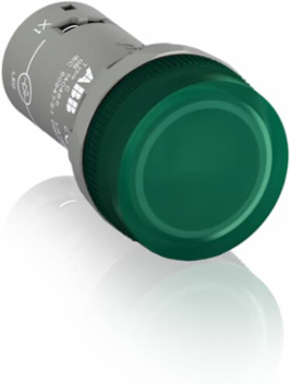

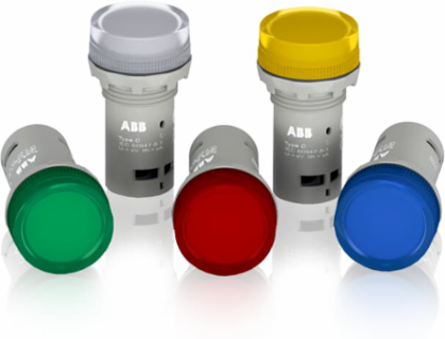

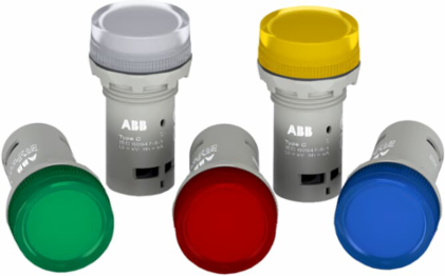

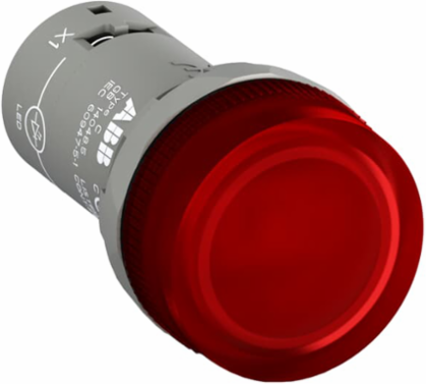

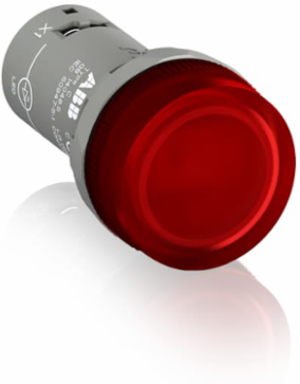

ABB CL-513Y PILOT LIGHT CL-513Y 110-130V a.c.
ABB CL-513Y PILOT LIGHT CL-513Y 110-130V a.c.
- MPN: CL-513Y
- PPN: ABB-CL-513Y
- UNSPSC: 39121500
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.60/ EA
Description
Compact Pilot Light - Pilot light head - Yellow - Illuminated - Lamptype: LED 110-130V AC
Specifications
Dimensions
- Product Net Width
- 0.03 m
- Product Net Depth / Length
- 0.055 m
Product Net Height0.03 m
Product Net Weight0.022 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -30 ... +85 °C
- Actuator Type
- Pilot light head
- Lamp Type
- LED 110-130V AC
- Enclosure Type NEMA
- Type1Type12Type13Type3RType4Type4X
- Rated Frequency (f)
- Supply Circuit 50 / 60 Hz
- Connecting Capacity
- Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm²
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 8 mmControl Circuit 8 mm
ColorYellow
IlluminationIlluminated
Degree of ProtectionFront IP66Front IP67Front IP69KTerminals IP20
Pollution Degree3
Rated Operational Voltage110 ... 130 V AC
Connection TypeScrew Clamp
Tightening Torque0.9 N·mControl Circuit 0.9 N·m
Classifications
- Object Classification Code
- E
- E-Number (Sweden)
- 3711374
eClassV11.0 : 27371223
Environmental
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
- RoHS Information
- 1SFC151012D0202
- WEEE B2C / B2B
- Business To Business
RoHS Date0626 5
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 18...14 AWG2x 18...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85369001
