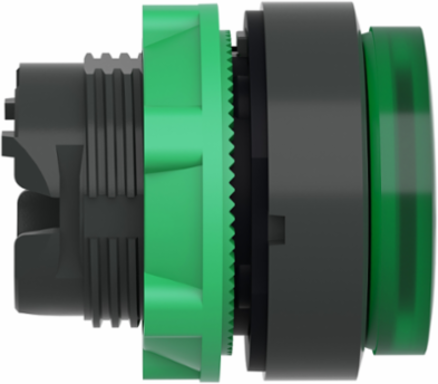

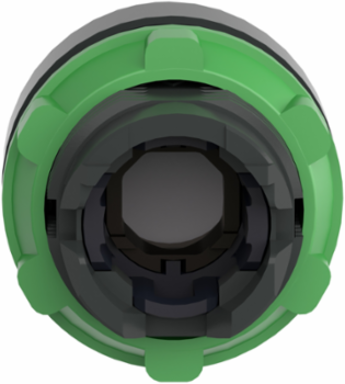

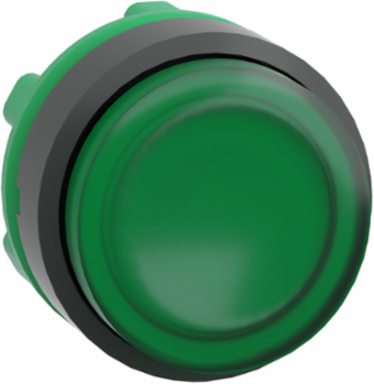

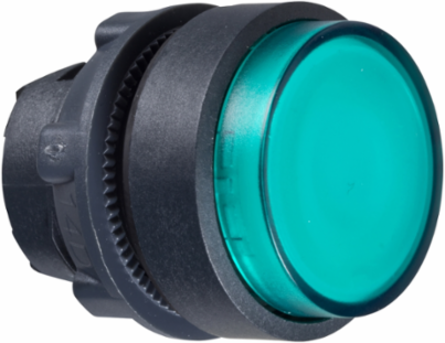

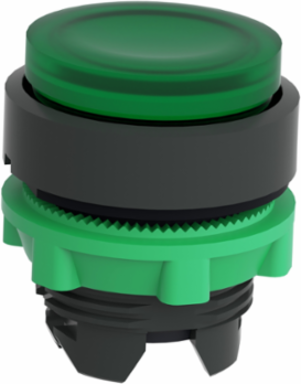

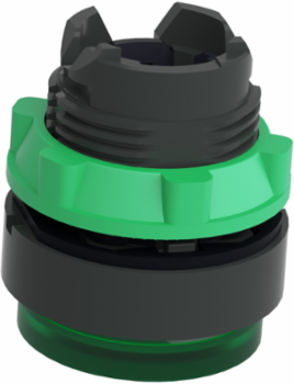

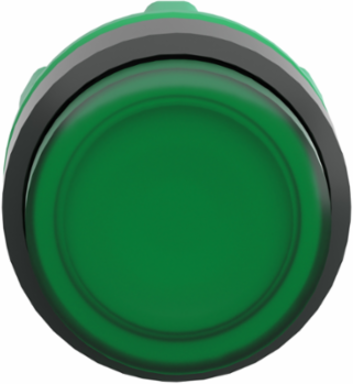

Schneider Electric ZB5AH33 Harmony XB5 Round Green Illuminated Push Button Head 22mm IP66

MPN: ZB5AH33
PPN: SCH-ZB5AH33
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$60.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This green projecting illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications
Large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	19 g

Physical Attributes

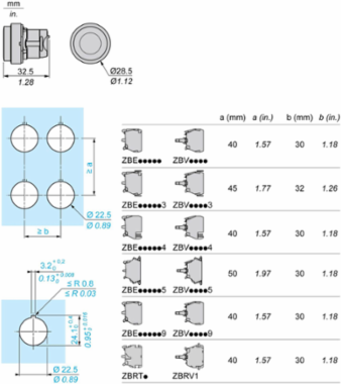

Cad Overall Depth	33 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	dark grey plastic, dark grey plastic
Electrical Composition Code	M5 2 single front mounting integral LEDM6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LED
Certificate Agency	DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0343355408
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.1414822296
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303008EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	29 %
Compatibility Code	ZB5
Electrical Shock Protection Class	class II conforming to IEC 60536
Group Of Product	projected push-push illum LED
Important Message	A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Marking	unmarked
Mounting Diameter	22 mm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name	XALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Cap/Operator Or Lens Colour	green
Customs Code	3926909989
Functional Unit Description	XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications. This pushbutton&nbsp;power consumption is 0.002W with 71% active mode for 10 years, and it product&nbsp;complies with IEC 60947-1 standards..
Functional Unit Unit	Unit
Recyclability Potential In %	29

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	1, no
Operator Profile 1 Cap Operator Or Lens Color	green
Carbon Footprint Of The Distribution Phase A4	0.006634697, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.005009665, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-08-10
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	6 %
Device Short Name	ZB5
Gcr Bridge	ZB5AHCUST08
Head Type	standard
Main Group	illum push-button
Mechanical Durability	5000000 cycles
Operator Profile	green projecting, unmarked
Product Or Component Type	head for illuminated push-button
Range Of Product	Harmony XB5
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Sustainable Packaging	Yes
Type Of Operator	push-push
X C Product	projected push-push illum LED
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level	29 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2303008EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	universal LED
Pep Code	ENVPEP2303008_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.1874621324
Environmental Disclosure	ENVPEP2303008_V1
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
