Harmony XB6 Green 16mm Rectangular Flush Pushbutton, IP65, 1NO + 1NC
Schneider Electric

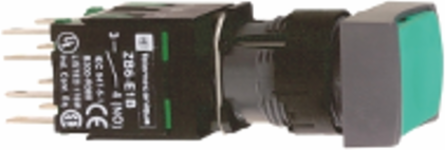

Schneider Electric XB6DA35B Harmony XB6 Green 16mm Rectangular Flush Pushbutton, IP65, 1NO + 1NC

  • MPN: XB6DA35B
  • PPN: SCH-XB6DA35B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $40.32

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Designed for versatility and reliability, this green rectangular flush pushbutton from Schneider Electric's Harmony XB6 series is an essential component for various automation and control applications. With a compact 16mm size and a spring return mechanism, it features both normally open and normally closed contacts, ensuring efficient operation in any position. Built to withstand harsh conditions, it boasts an impressive mechanical durability of up to 2 million cycles and operates effectively in temperatures ranging from -25°C to 70°C. The robust construction includes a silver alloy contact material and a protective IP65 rating, making it suitable for demanding environments while ensuring electrical safety and reliability.
