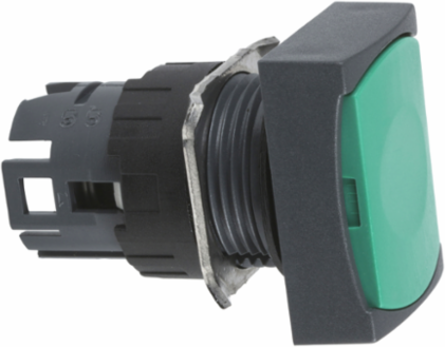

Head for non illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, unmarked
Schneider Electric

Schneider Electric ZB6DA3 Head for non illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, unmarked

  • MPN: ZB6DA3
  • PPN: SCH-ZB6DA3
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $18.52

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony ZB6DA3 is a green rectangular flush push button head, spring return, unmarked. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France, Mexico

    Physical Attributes

    Cad Overall Depth
    33 mm
    Cad Overall Width
    24 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Carbon Footprint Of The Distribution Phase A4
    0.0013076588, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    0.0011273973, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    0 kg CO2 eq., 0
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2403025EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Bezel Material
    plastic
    Device Short Name
    ZB6
    Mounting Diameter
    16 mm
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    Yes
    Shape Of Signaling Unit Head
    rectangular
    Sustainable Packaging
    No
    Type Of Operator
    spring return
    Pep Code
    ENVPEP2403025EN
    Pep Verification Date
    2023-10-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.018143213
    Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.2233935243
    Certificate AgencyUL, GOST, CCC, CSA
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Compatibility CodeZB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Operator Profilegreen flush, unmarked
    Product Or Component Typehead for non-illuminated push-button
    Range Of ProductHarmony XB6
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Warranty In Months18
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential, In %17

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2403025EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2403025EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.2439717933
    Environmental DisclosureENVPEP2403025EN
    Ip Degree Of ProtectionIP65 IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-10-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    head for non-illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
