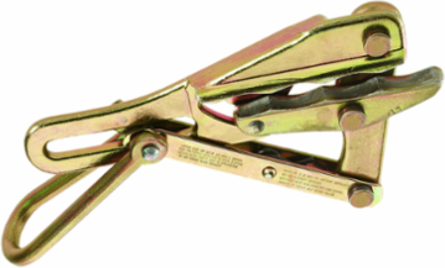

Klein Tools 1659-30 Chicago Grip 0.5 Inch PVC-Covered Conductors, 4500 lb Max Load, Round Jaw
- MPN: 1659-30
- UPC: 092644471261
- PPN: KLT-1659-30
- UNSPSC: 46182308
CAD
$634.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein Tools 1659 Series PVC-Covered Chicago Grips have a specially machined serpentine jaw which allows an insulated conductor to be inserted through the jaws. This eliminates the need to strip insulation from the conductor first. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Serpentine jaws are specially machined to allow insertion of insulated conductor through the jaws, which reduces danger of slippage which might result in insulation damage
- Eliminates necessity of stripping insulation from conductor
- Round inside-jaw contour
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Made in USA
- (NOT HDPE)
Documentation & Downloads
Specifications
Key Specifications
- Application
- Wire Pulling
- Type
- Chicago Grip
- Cable Type
- PVC-Coated
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Serpentine
- Jaw Length (cm)
- 12.1
- Jaw Length (Inch)
- 4.75
- Weight (lb)
- 3.3
- Width
- 3.8250 in
- Weight
- 3.2580 lbs
MaterialSteel
Jaw TypeRound
Cable Diameter0.31" to 0.5" (7.87 to 12.7 mm)
Hot LatchNo
Swing LatchNo
Weight (kg)1.5
Maximum Safe Load (kg)2041.2
Maximum Safe Load (lb)4500
Height1.9170 in
Depth8.5500 in
