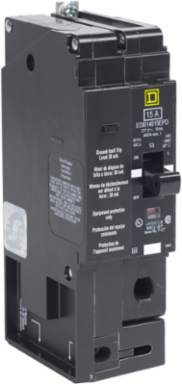

Schneider Electric EJB14020EPD Mini Circuit Breaker 20A 1 Pole 277V AC 100 kA Max with 30 mA GFCI
Schneider Electric EJB14020EPD Mini Circuit Breaker 20A 1 Pole 277V AC 100 kA Max with 30 mA GFCI
- MPN: EJB14020EPD
- UPC: 785901484509
- PPN: SCH-EJB14020EPD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1016.55/ EA
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
Specifications
Specifications
- Module Type
- E-Frame
- Earth-Leakage Protection Class
- class B
- Product Or Component Type
- miniature circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
Trip Unit Rating875-875 A
Device Short NameEJB
Complementary

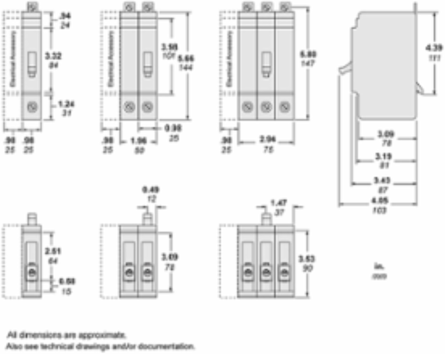

- Height
- 6.64 in
- Tightening Torque
- 3.4-3.4 N.m 2.5-16 mm² AWG 14...AWG 6)
- Product Destination
- NF panelboard
- Number Of Spaces Required
- 2
- Net Weight
- 2 lb(US)
- Mounting Mode
- bolt-on
- Protection Type
- overload || short-circuit
- Awg Gauge
- AWG 14...AWG 6 copper || AWG 12...AWG 4 aluminum
- Depth
- 4.05 in
- Earth-Leakage Sensitivity
- 30 mA
- Number Of Poles
- 1
Holding Current270 A
Breaking Capacity CodeJ
Electrical Connectionlugs aluminum
Number Of Spaces2
Circuit Breaker ApplicationHACR rated || Switching Duty rated || HID rated
[In] Rated Current20 A
Local Signallingtrip indicator
Width1.96 in
Breaking Capacity65 kA 240 V AC || 65 kA 277 V AC || 100 kA 120 V AC || 65 kA 120/240 V AC
Trip Unit Technologythermal-magnetic
[Ue] Rated Operational Voltage277 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Environment
- Product Certifications
- cULus
Ambient Air Temperature For Operation40 °C
