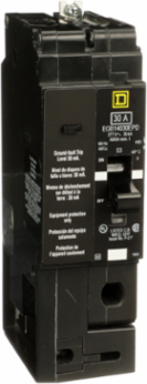

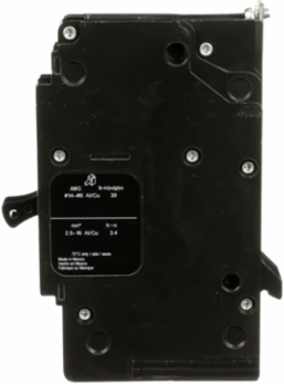

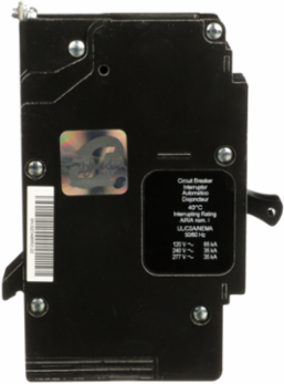

Square D EGB14030EPD Mini Circuit Breaker 30A 1 Pole 277V AC Bolt-On with 30 mA Ground Fault Protection
- MPN: EGB14030EPD
- UPC: 785901590545
- PPN: SCH-EGB14030EPD
- UNSPSC: 39121603
CAD
$999.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 30A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Features
- Used in lighting panelboards
- Superior overload and short circuit protection
- From 15A to 125A ratings
- Troubleshoot faster with Visi-Trip™
- This product is TAA compliant.
- Made to last 20 years
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 943.471 g |
| Compliance | TAA Compliant |
|---|---|

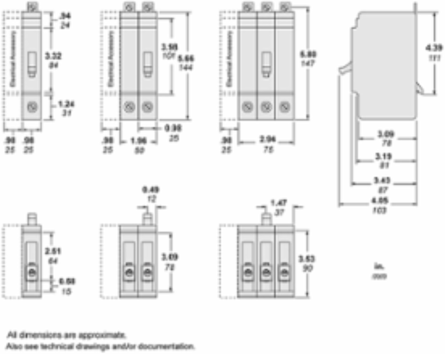

| Depth | 4.05 in |
Complementary Attributes
| Line Rated Current | 30 A |
|---|
| Ue Rated Operational Voltage | 277 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Circuit Breaker Application | HACR rated, HID rated |
| Carbon Footprint Of The Distribution Phase A4 | 0.3189288969, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0250677695, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 51 kg CO2 eq., 50.548 |
| Local Publishable Date | 2025-11-19 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Not Applicable/Out of Scope |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Device Short Name | EGB |
| Energy Efficiency Optimized | False |
| Local Signalling | trip indicator |
| Mounting Mode | bolt-on |
| Number Of Spaces | 2 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 56 kg CO2 eq. |
| Trip Unit Technology | thermal-magnetic |
| Data Source | extrapolated product |
| Width Nominal | 1.96 in |
| Nbr. Of Units In Pkg. | 1 |
| Earth Leakage Sensitivity | 30 mA |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Protection Type | short-circuit, overload |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.1397663039 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 5 kg CO2 eq., 5.3686049822 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Use Carbon Footprint | 50.548 |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2212008 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Full Compliance Status | Not Applicable/Out of Scope |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 14 AWG...6 AWG copper12 AWG...4 AWG aluminium |
| Electrical Connection | lugs aluminium |
| Holding Current | 270 A |
| Module Type | E-Frame |
| Number Of Poles | 1 |
| Number Of Spaces Required | 2 |
| Product Destination | NF panelboard |
| Range Of Product | 125 A Frame EDB-EGB-EJB |
| Software Version | EIME v5.9.4 |
| Tightening Torque | 3.4-3.4 N.m 2.5-16 mm² (14 AWG...6 AWG) |
| Trip Unit Rating | 875-875 A |
| Database Version | 2022-01 |
| Height Nominal | 6.64 in |
| Certificate Agency | cULus |
| Customs Code | 8536200040 |
| Earth Leakage Protection Class | class B |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1 |
| Functional Unit Unit | unit |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP2212008EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Carbon Footprint | 56.4003679525 |
| Circularity Profile | ENVEOLI2212008 |
| Eu Rohs Directive | Not Applicable/Out of Scope |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2212008EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | 125 A Frame EDB-EGB-EJB |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
