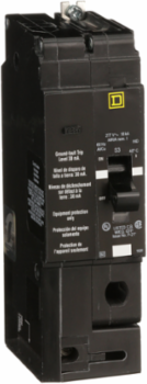

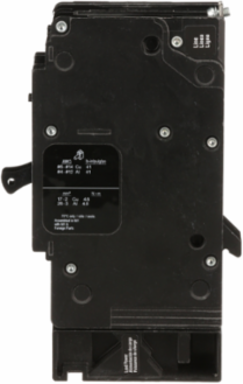

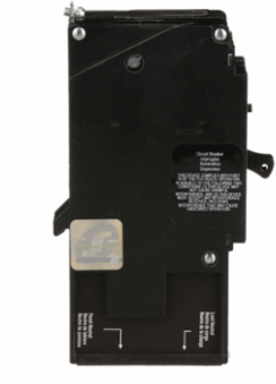

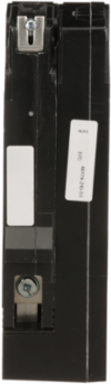

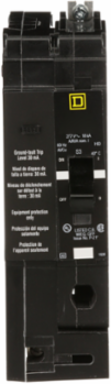

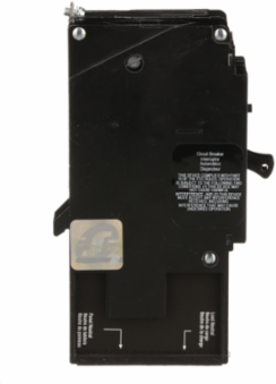

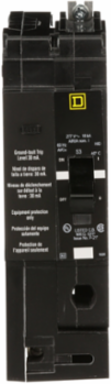

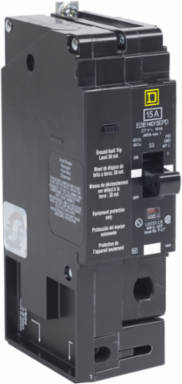

Square D EDB14050EPD Mini Circuit Breaker 50A 1 Pole 277V AC 30mA Ground Fault Protection
- MPN: EDB14050EPD
- UPC: 785901583622
- PPN: SCH-EDB14050EPD
CAD
$813.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 50A, 1 pole, and has a operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 4.05 in
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- LC, OM
- Awg Gauge
- AWG 14...AWG 6 copper, AWG 12...AWG 4 aluminium
- Protection Type
- short-circuit, overload
- Certificate Agency
- cULus, IEC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.141110383
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.4202328043
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 50.548
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2212008
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Not Applicable/Out of Scope
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Device Short Name
- EDB
- Energy Efficiency Optimized
- False
- Local Signalling
- trip indicator
- Mounting Mode
- bolt-on
- Number Of Spaces
- 2
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- No
- Sustainable Packaging
- Yes
- Trip Unit Rating
- 1800-1800 A
- Pep Code
- ENVPEP2212008EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Width Nominal
- 1.96 in
- Earth-leakage Sensitivity
- 30 mA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 4292.7
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 50.548
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 7.7289
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 680.51
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 639.64
- Water Pollution (M3) Operational Energy Use [B6]
- 2492
Persona Type NamesContractor, Original Equipment Manufacturer
Circuit Breaker ApplicationHID rated, HACR rated
Tightening Torque3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10), 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Carbon Footprint Of The Distribution Phase [A4]0.3219959142, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0253088366, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]51 kg CO2 eq., 50.548
Local Publishable Date2025-11-19
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusNot Applicable/Out of Scope
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Electrical Connectionlugs aluminium
Holding Current630 A
Module TypeE-Frame
Number Of Poles1
Number Of Spaces Required2
Product DestinationNF panelboard
Range Of Product125 A Frame EDB-EGB-EJB
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint56 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 277 VAC and rated current 20 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P& 10- Rated breaking capacity 18 kA, 25 kA max& 10- Tripping curve 515-1
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal6.64 in
[Ue] Rated Operational Voltage277 V AC
Earth-leakage Protection Classclass B
Package Weight(Lbs)952.544 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]615.44
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.3515
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]639.64
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]40.869
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]40.869
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- 40 °C
- Environmental Disclosure
- ENVPEP2212008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Carbon Footprint56.4566479382
Circularity ProfileENVEOLI2212008
Eu Rohs DirectiveNot Applicable/Out of Scope
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2212008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
