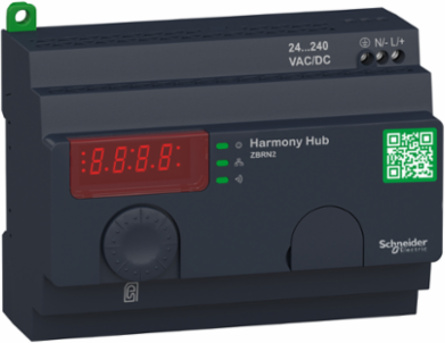

Schneider Electric ZBRN2 Harmony Hub Wireless Serial Line Gateway, 24-240V AC/DC, IP20, 100m Range
- MPN: ZBRN2
- PPN: SCH-ZBRN2
- UNSPSC: 39122216
CAD
$481.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 60 mm |
| Weight | 308 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus client application |
|---|
Complementary Attributes
| Control Circuit Frequency | 50...60 Hz +/- 10 % |
|---|---|
| Maximum Power Consumption In W | 4 W AC/DC |
| Uimp Rated Impulse Withstand Voltage | 4 kV |
| Rated Short Duration Power Frequency Withstand Voltage | 1.5 kV 50 Hz IEC 60947-5-1 |
| Integrated Connection Type | 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2...115.2 kbauds, 2 twisted shielded pairs |
|---|---|
| Maximum Sensing Distance | 100 m in free field250 m if a relay antenna is located between the transmitter and Harmony Hub60 m if an external antenna is connected to Harmony Hub25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure |
| Us Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Channels Utilisation | <= 60 devices, <= 60 devices, <= 60 devices, <= 60 devices |
| Electrical Connection | 1 conductor cable 0.2-4 mm² - 24 AWG...12 AWG - solid - without cable end IEC 60947-12 conductors cable 0.2-1.5 mm² - 24 AWG...16 AWG - solid - without cable end IEC 60947-1, 1 conductor cable 0.2-0.75 mm² - 24 AWG...14 AWG - flexible - with cable end IEC 60947-1, 2 conductors cable 0.2-2.5 mm² - 24 AWG...18 AWG - flexible - with cable end IEC 60947-1 |
| Mounting Support | 35 mm symmetrical DIN rail conforming to IEC 60715, mounting plate |
| Product Or Component Type | Harmony Hub wireless/Serial Line gateway, Harmony Hub wireless/Serial Line gateway |
| Status Led | 1 LED Green power ON1 LED Yellow communication network, 5 LEDs Red function mode1 LED green and yellow reception signal |
| Vibration Resistance | +/- 3.5 mm 5-14 Hz) IEC 60068-2-6, +/- 3.5 mm 5-14 Hz) IEC 60068-2-6, +/- 3.5 mm 5-14 Hz) IEC 60068-2-6+/- 3.5 mm 5-14 Hz) IEC 60068-2-6, +/- 3.5 mm 5-14 Hz) IEC 60068-2-6, +/- 3.5 mm 5-14 Hz) IEC 60068-2-61 gn 5-150 Hz) on panel mounting IEC 60068-2-6, 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6 |
| Carbon Footprint Of The Distribution Phase A4 | 0.048595008, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0082179328, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 31 kg CO2 eq., 31.0418797733 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Relay, Control & Measurement - gateway |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1103010EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Antenna Gain | 0 dBi |
| Data Format | 7 or 8 bits, 1 or 2 stop bits |
| Device Short Name | ZBRN2 |
| Housing Material | polycarbonate |
| Operating Position | any position |
| Product Specific Application | Wireless Schneider Electric devices ecosystem |
| Response Time | < 30 ms< 30 ms |
| Shock Resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 34 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 122 mm |
| Customs Code | 8517620090 |
| Warranty In Months | 18 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Dielectric Strength | 3000 V between input and output AC4250 V between input and output DC1500 V between input and ground AC, 2150 V between input and ground DC |
| Electromagnetic Compatibility | 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-51.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11 |
| Parity | no, even, odd |
| Radio Agreement | ANATEL, type III ETSI EN 301 489-3, FCC, category 2 ETSI EN 300 440-1, ICASARSS, category 1 ETSI EN 300 440-1, SRRC |
| Tightening Torque | 0.35-0.4 N.m IEC 60947-1, 3.09-3.54 lbf.in IEC 60947-1 |
| Certificate Agency | GOST, CE, UL, C-tick, CSA, CCC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.1538209493 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 2.8142165333 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Antenna Type | integrated |
| Data Storage Equipment | SD card |
| Function Of Module | Zigbee green power concentrator |
| Immunity To Microbreaks | 10 ms |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Topology | devices linked by daisy-chaining or tap junctions |
| Transmission Frequency | 2405-2480 MHz |
| Database Version | 2016-11 |
| Height Nominal | 90 mm |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Protection | 16 A GB2 circuit breaker |
| Functional Unit Description | The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years. |
| Energy Consumption On Product Lifetime In Kwh | 52.5746 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP20 IEC 60529 casing), IP20 terminals) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1103010EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2020-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 34.0667301968 |
| Environmental Disclosure | ENVPEP101106EN |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 90-90 % -25-55 °C, without condensation ETSI EN 300 440-1 |
| Pep Code | ENVPEP101106EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | Harmony Hub wireless/Serial Line gateway, Harmony Hub wireless/Serial Line gateway |
|---|
| Range Of Product | Harmony |
|---|
ETIM
| ETIM 8 | EC002024 |
|---|---|
| ETIM 10 | EC002024 |
| ETIM 9 | EC002024 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV differential mode IEC 61000-4-52 kV common mode IEC 61000-4-5 |
|---|
