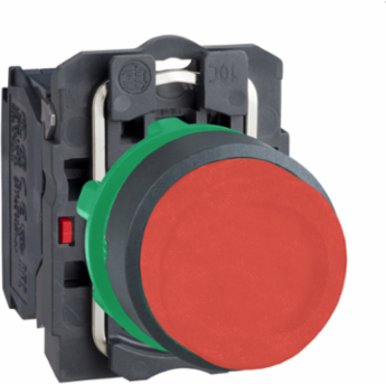

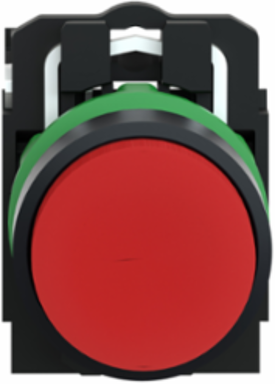

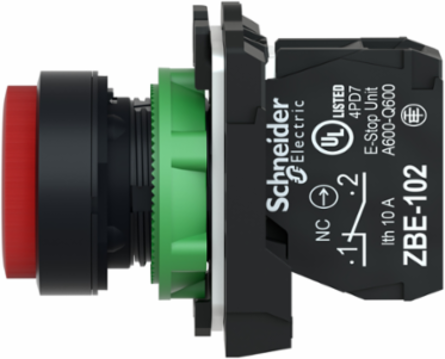

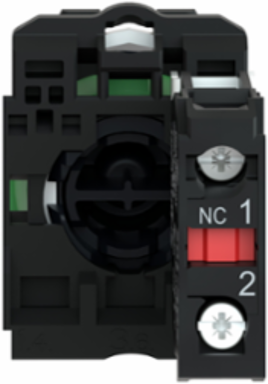

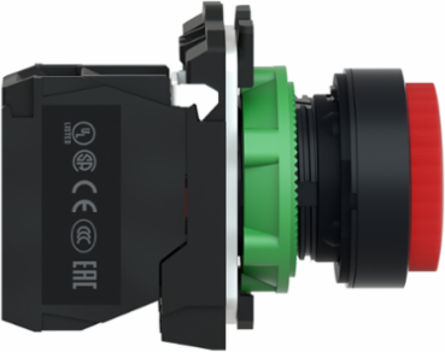

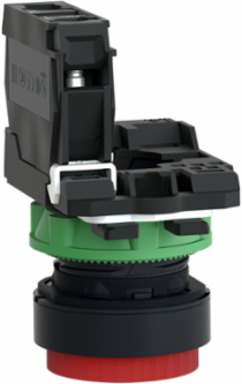

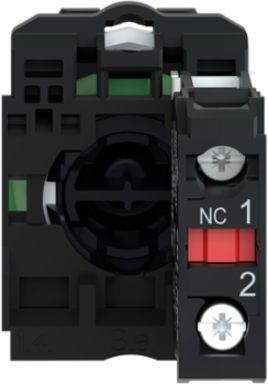

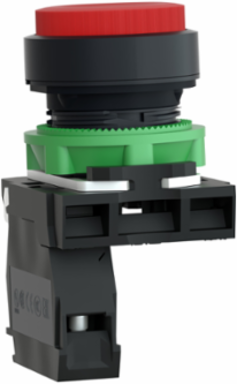

Schneider Electric XB5AL42 Harmony XB5 Red Push Button 22mm Spring Return 1NC IP66
- MPN: XB5AL42
- PPN: SCH-XB5AL42
CAD
$36.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, projecting modular red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides an ergonomic interface for controlling your machines and processes thanks to its protuding actuator. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Mexico

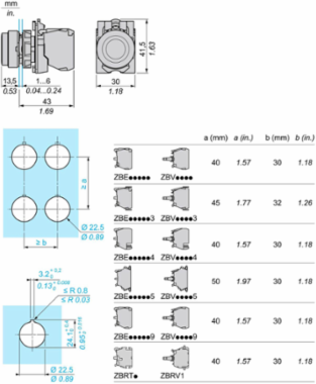

Depth57 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, plasticdark grey plastic
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Travel
- 1.5 mm NC changing electrical state), 4.3 mm total travel)
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Terminals Description Iso N°1
- (21-22)NC, (21-22)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.07126589388316908
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.29222504482492223
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 24.62
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2303008EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NC
- Device Short Name
- XB5
- Gcr Bridge
- XB5ALCUST01
- Mechanical Durability
- 10000000 cycles
- Operating Force
- 3.5 N NC changing electrical state
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Contacts Composition
- 1 NC
- Pep Code
- ENVPEP2303008EN
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- Width Nominal
- 30 mm
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyDNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.013767481154870852, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01039542107849661, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.002395126760563381
Local Publishable Date2026-01-12
Future Imap19.02
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Head Typestandard
Mounting Diameter22.5 mm
Operator Profilered projecting, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typepush-button
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Profile 1 Cap Operator Or Lens Colorred
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Height Nominal42 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)36.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2303008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2303008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.39004896770202213
Environmental DisclosureENVPEP2303008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
