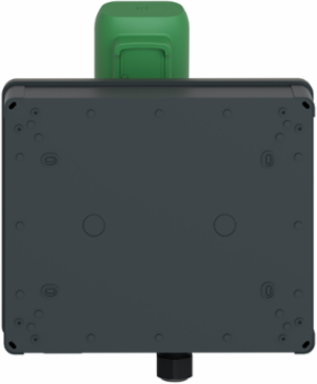

Schneider Electric XARS8L12W Harmony eXLhoist Wireless Control Station, 100 m Range, IP 65, 2.1 kg
- MPN: XARS8L12W
- PPN: SCH-XARS8L12W
- UNSPSC: 39121561
CAD
$2311.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

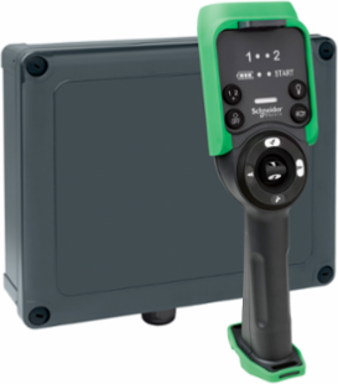

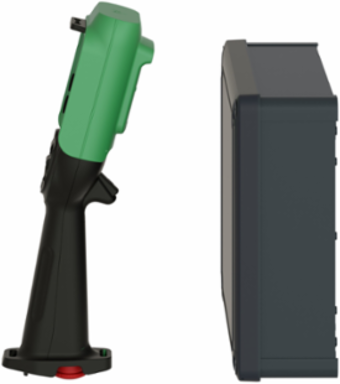

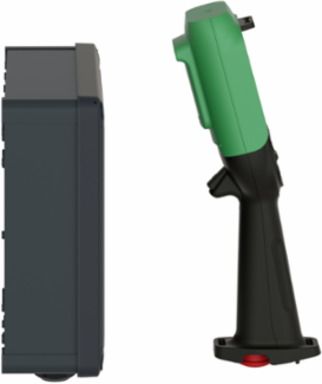

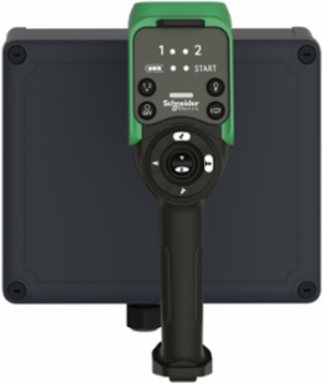

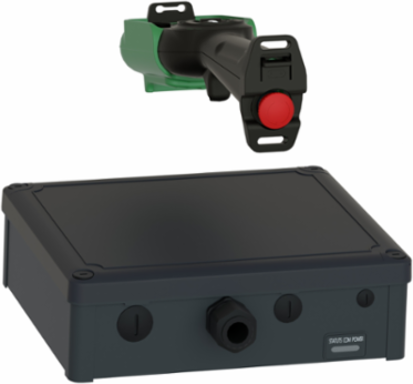

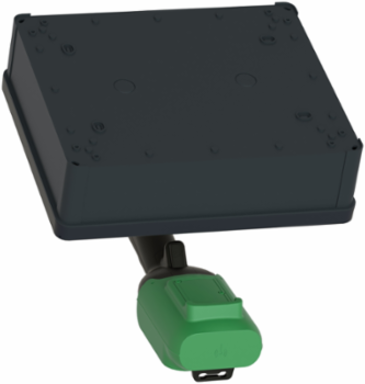

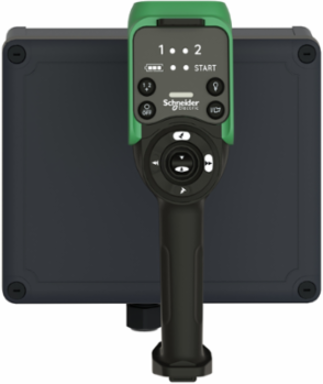

This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART8L) and base station (or receiver ZARB12W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Features
- Its innovative design allows intuitive and easy one-hand operation
- Designed for material handling and hoisting applications
- Robust performance and safety compliance
- Wide availability throughout an extensive distribution network
Documentation & Downloads
Specifications
Key Specifications
| Weight | 2352 g |
|---|
Communications & Management Attributes
| Communication Network Type | wireless bluetooth low energy |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Control Station Application | emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061 |
| Kit Composition | remote control, base station |
| Radio Agreement | ANATEL, ARIB, FCC, ICASA, SRRC, RSS |
| Carbon Footprint Of The Distribution Phase A4 | 0.3075625827, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.627632126, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 2 037 kg CO2 eq., 2036.6256614052 |
| Local Publishable Date | 2026-03-31 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403029EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1415 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Product Kit Identifier | N |
| Control Station Type | wireless |
| Number Of Channels | 50 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony eXLhoist |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 2 118 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 8537109170 |
| Functional Unit Description | The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine. |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 3942 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electromagnetic Compatibility | resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3 |
| Product Specific Application | material handling, hoisting applications |
| Certificate Agency | CE, UL, CSA, C-tick, JIS, KC, EAC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.5923533858 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 78 kg CO2 eq., 78.4493858268 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package |
| Tier | 1 |
| Function Option | Advanced |
| Cable Entry | cable gland |
| Device Short Name | XARS |
| Operating Distance | 100 m in free air |
| Product Or Component Type | control station |
| Returnability | Yes |
| Sustainable Packaging | No |
| Transmission Frequency | 2.4 GHz |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 2117.6025953265 |
| Environmental Disclosure | ENVPEP1403029EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1403029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403029EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % -20-45 °C storage |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | control station |
|---|
| Range Of Product | Harmony eXLhoist |
|---|
ETIM
| ETIM 8 | EC000257 |
|---|---|
| ETIM 10 | EC000257 |
| ETIM 9 | EC000257 |
|---|
