Schneider Electric XARSK8D18W Harmony eXLhoist Wireless Control Station, 100m Range, 50 Channels, Impact & Water Resistant

MPN: XARSK8D18W
PPN: SCH-XARSK8D18W
UNSPSC: 39121561

$3339.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

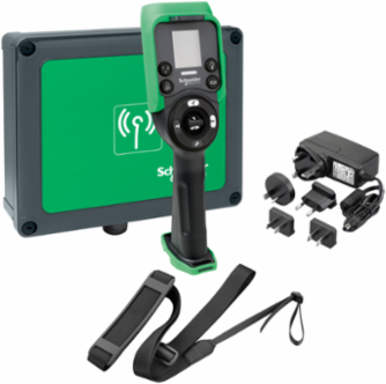

This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D , a base ZARB18W , a charger , a shoulder belt , a CABLE USB/RJ45 and a config software High performance International standards & certifications (IP69K, IK03, Type 4X)

Features

Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions
Eliminates the need to drill multiple 22mm holes in the machine and system
Light gray colored base, favoring visual contrast and visibility in dark conditions
Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Vibration resistant screw clamp connection terminals make it suitable installation on high impact machine

Documentation & Downloads

Specifications

Communications & Management Attributes

Communication Network Type	wireless bluetooth low energy

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Station Application	emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061
Kit Composition	remote control, base station, shoulder belt, cable, configuration software
Radio Agreement	SRRC, RSS, ARIB, ANATEL, FCC, ICASA
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
Tier	2
Function Option	Advanced
Cable Entry	cable gland
Device Short Name	XARS
Operating Distance	100 m in free air
Product Or Component Type	control station
Returnability	Yes
Transmission Frequency	2.4 GHz
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electromagnetic Compatibility	resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
Product Specific Application	hoisting applications, material handling
Certificate Agency	CE, UL, CSA, C-tick, JIS, KC, EAC
Local Publishable Date	2026-03-31
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403029EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1415
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	2
Function Option Id	ADVANCED
Product Kit Identifier	N
Control Station Type	wireless
Number Of Channels	50
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony eXLhoist
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8537109170

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403029EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % -20-45 °C storage

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403029EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403029EN
