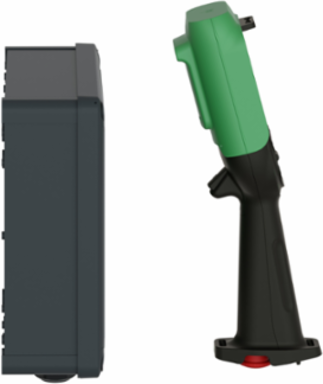

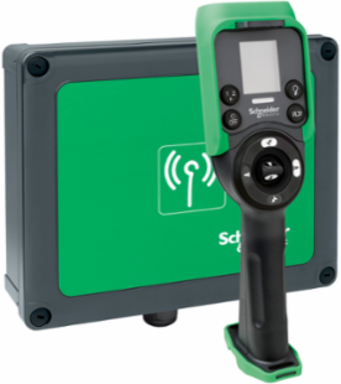

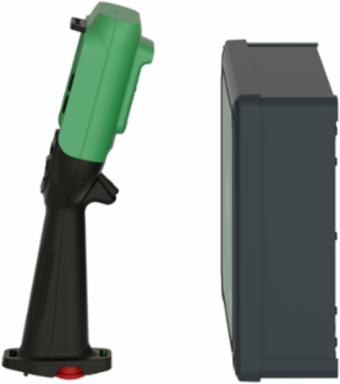

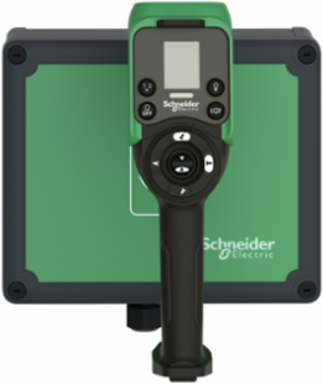

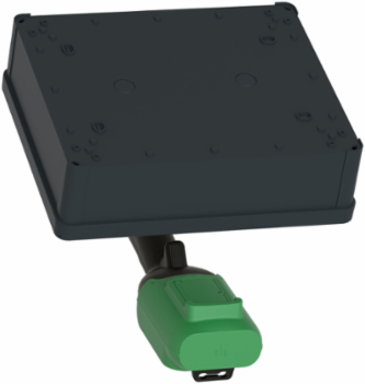

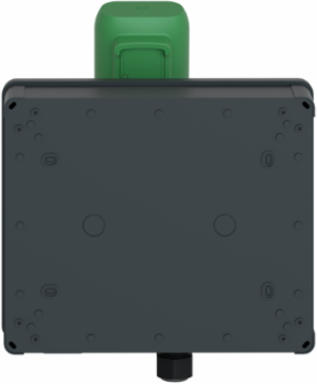

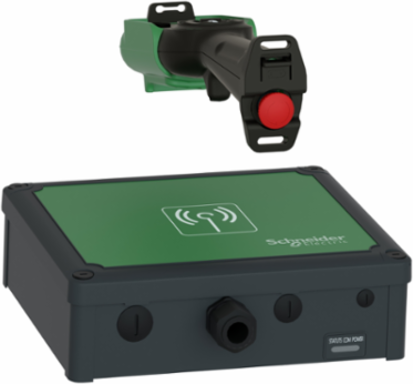

Schneider Electric XARS8D18W Harmony eXLhoist Wireless Control Station with 100 m Range and SIL 3 Functions
- MPN: XARS8D18W
- PPN: SCH-XARS8D18W
CAD
$3082.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, France
Communications & Management Attributes
- Communication Network Type
- wireless bluetooth low energy
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Station Application
- emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1, motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061
- Kit Composition
- base station, remote control
- Radio Agreement
- RSS, SRRC, ANATEL, ARIB, FCC, ICASA
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
- Tier
- 2
- Function Option
- Advanced
- Cable Entry
- cable gland
- Device Short Name
- XARS
- Operating Distance
- 100 m in free air
- Product Or Component Type
- control station
- Returnability
- Yes
- Transmission Frequency
- 2.4 GHz
- Pep Code
- ENVPEP1403029EN
- Package Weight(Lbs)
- 2.541 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityresistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
Product Specific Applicationhoisting applications, material handling
Certificate AgencyCE, UL, CSA, C-tick, JIS, KC, EAC
Local Publishable Date2026-03-31
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1415
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id2
Function Option IdADVANCED
Product Kit IdentifierN
Control Station Typewireless
Number Of Channels50
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony eXLhoist
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 % -20-45 °C storage
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1403029EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403029EN
General Attributes
- Product Or Component Type
- control station
Range Of ProductHarmony eXLhoist
ETIM
- ETIM 8
- EC000257
ETIM 9EC000257
