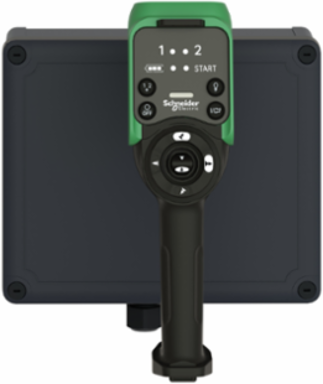

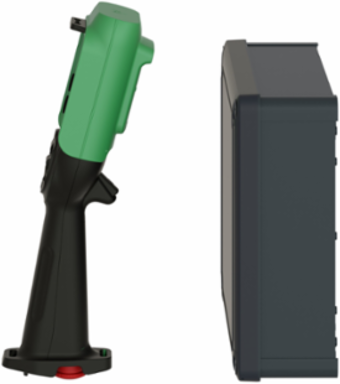

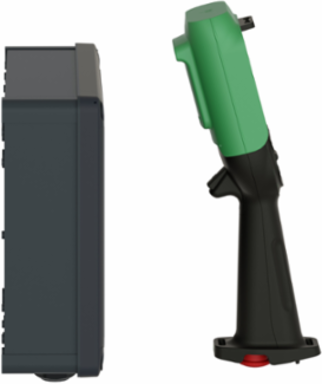

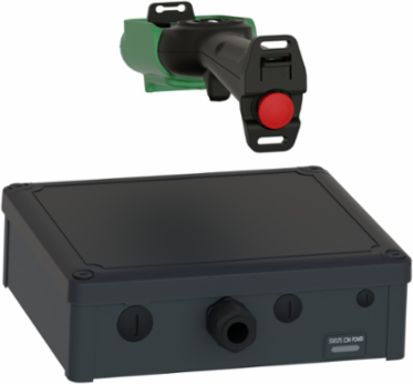

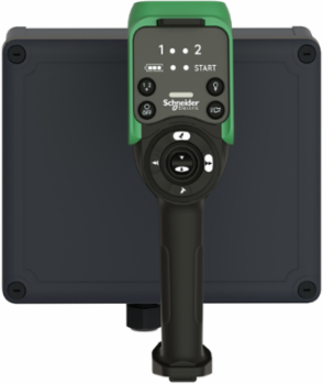

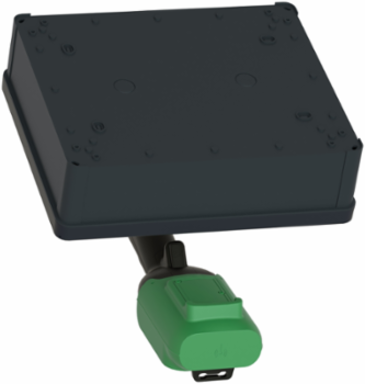

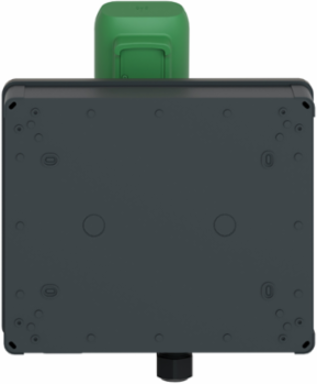

Schneider Electric XARSK8L12W Harmony eXLhoist Wireless Control Station with USB, 100 m Range
- MPN: XARSK8L12W
- PPN: SCH-XARSK8L12W
CAD
$2568.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

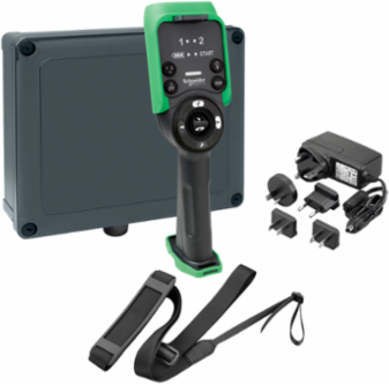

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system, accessories, USB/RJ45 cable and configuration software. It is designed for hoisting or material handling applications. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, France, United States
Communications & Management Attributes
- Communication Network Type
- wireless bluetooth low energy
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Station Application
- emergency stop function SIL 3 maximum can reach PL e/category 4)ISO 13849-1, motion function SIL 1 maximum can reach PL c/category 1)ISO 13849-1, limiter protection function SIL 1 maximum can reach PL c/category 1)ISO 13849-1stop function SIL 2 maximum can reach PL d/category 3)IEC 62061, stop function SIL 2 maximum can reach PL d/category 3)ISO 13849-1, emergency stop function SIL 3 maximum can reach PL e/category 4)IEC 62061, motion function SIL 1 maximum can reach PL c/category 1)IEC 62061, limiter protection function SIL 1 maximum can reach PL c/category 1)IEC 62061
- Kit Composition
- cable, remote control, shoulder belt, base station, configuration software
- Radio Agreement
- SRRC, ICASA, FCC, ARIB, RSS, ANATEL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3960914383, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8082898425, 0.8 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 2 037 kg CO2 eq., 2036.6256614052
- Local Publishable Date
- 2026-02-17
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Product Kit Identifier
- N
- Control Station Type
- wireless
- Number Of Channels
- 50
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony eXLhoist
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 2 141 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 3942
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Package Weight(Lbs)
- 3.029 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityresistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

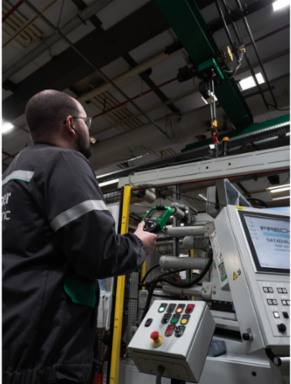

Product Specific Applicationmaterial handling, hoisting applications
Certificate AgencyCE, UL, CSA, C-tick, JIS, KC, EAC
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.050696601
Carbon Footprint Of The Manufacturing Phase [A1 To A3]101 kg CO2 eq., 101.0302677165
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM ION BATTERIES IN EQUIP. CELL : ≤ 20Wh AND ≤ 4 CELLS in Package
Tier1
Function OptionAdvanced
Cable Entrycable gland
Device Short NameXARS
Operating Distance100 m in free air
Product Or Component Typecontrol station
ReturnabilityYes
Sustainable PackagingNo
Transmission Frequency2.4 GHz
Pep CodeENVPEP1403029EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2140.9110070036
- Environmental Disclosure
- ENVPEP1403029EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1403029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1403029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % -20-45 °C storage
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- control station
Range Of ProductHarmony eXLhoist
ETIM
- ETIM 8
- EC000257
ETIM 9EC000257
