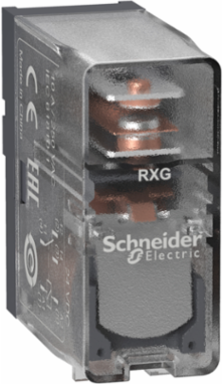

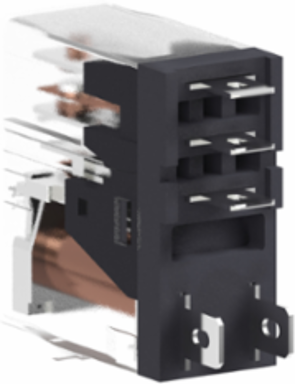

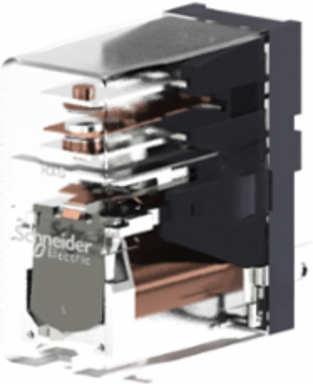

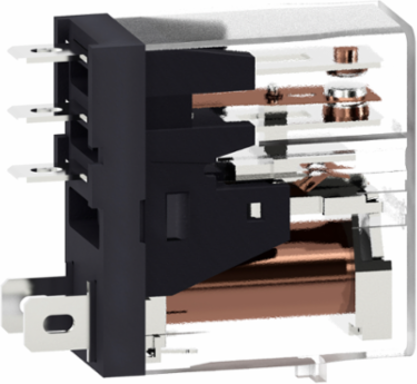

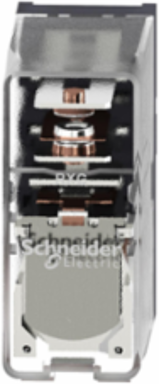

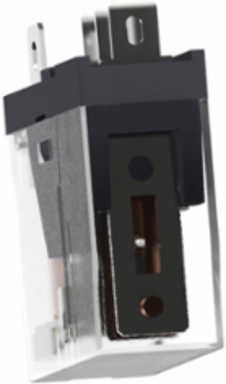

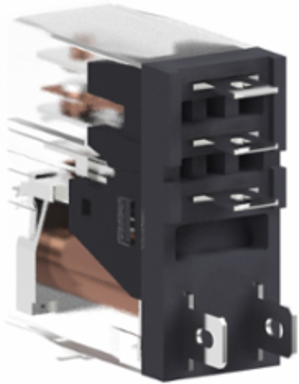

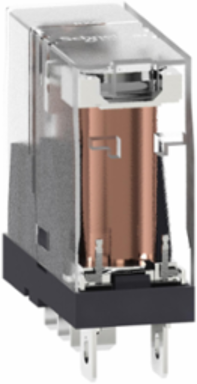

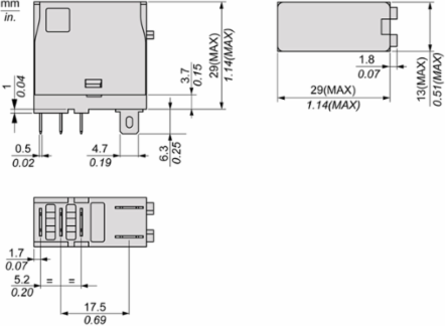

Schneider Electric RXG15BD Harmony Electromechanical Relay, 10A, 1 C/O, IP40, 24V DC

MPN: RXG15BD
PPN: SCH-RXG15BD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$11.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, United States

Complementary Attributes

Control Circuit Type	DC
Maximum Switching Capacity	2500 VA
Minimum Switching Capacity	500 mW at 100 mA, 5 V DC

Line Rated Current	10 A
Maximum Switching Voltage	250 V AC30 V DC
Rated Current	10 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation
Operating Rate	<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Certificate Agency	CSA, CE, EAC, UL, DNV
[Uc] Control Circuit Voltage	230 V DC, 24 V
Drop-out Voltage Threshold	>= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.033233003, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.6495111303
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Resistance	100 mOhm
Contacts Type And Composition	1 C/O
Electrical Insulation Class	class F
Load Current	10 A 250 V AC
Operating Time	20 ms
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	interface relay
Returnability	Yes
Series Name	RXG series
Software Version	EIME v5.7.0.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	7 kg CO2 eq.
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation5 gn +/- 0.75 mm 10-150 Hz)not in operation
Pep Code	ENVPEP2208012EN
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55 °C
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	13.6904
Customs Code	8536410020

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
Contacts Composition	1 C/O
[Ie] Rated Operational Current	10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.029158966, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0014801815
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	5 kg CO2 eq., 5.3907027451
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2208012EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	1100 Ohm at 23 °C +/- 10 %
Contacts Material	silver alloy (AgSnO2In2O3)
Control Type	without lockable test button
Insulation Resistance	1000 MOhm at 500 V DC
Mechanical Durability	10000000 cycles
Overvoltage Category	III
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Status Led	without
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	24 V
Database Version	2018-09
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	69
[Uimp] Rated Impulse Withstand Voltage	1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation
Package Weight(Lbs)	19.000 g
Warranty (In Months)	18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	13.6904

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	7.1040860259
Environmental Disclosure	ENVPEP2208012EN
Ip Degree Of Protection	IP40
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2208012EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2208012EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Relative Humidity	10-85 %
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
