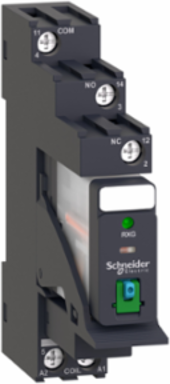

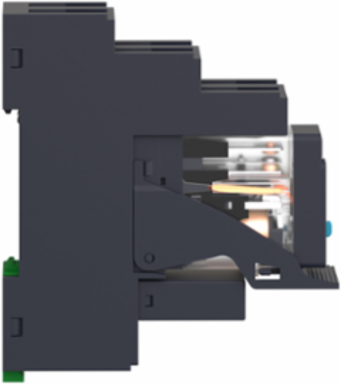

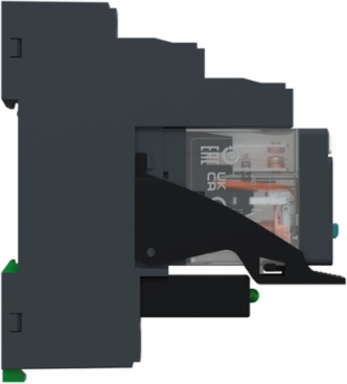

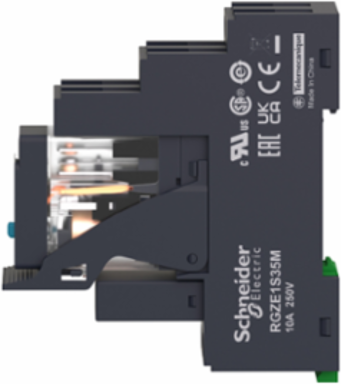

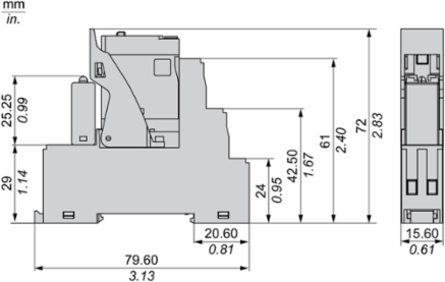

Schneider Electric RXG12BDPV Harmony Electromechanical Plug-In Relay, 10A, 1 CO, 24V DC, LED Indicator

  • MPN: RXG12BDPV
  • PPN: SCH-RXG12BDPV
  • UNSPSC: 39122334
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $38.63

    / EA

    Available to Order from Manufacturer

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a diode protection module. This is a 10A, 24Vdc, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

    Features

    • Easy to use
    • High performance ensuring machine and system availability
    • Wide range to meet most industrial applications
    • Mechanical durability of 10 million cycles
    • Electrical durability of 100,000 cycles
    • IP20 degree of protection
    • Wide range of operating temperature from -40°F to 158°F

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France
    Weight58 g

    Complementary Attributes

    Ie Rated Operational Current10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL
    Control Circuit TypeDC
    Maximum Switching Capacity2500 VA AC300 W DC
    Minimum Switching Capacity500 mW at 100 mA, 5 V DC
    Uimp Rated Impulse Withstand Voltage1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation
    Uc Control Circuit VoltageDC, 24 V
    Line Rated Current10 A
    Maximum Switching Voltage250 V
    Ui Rated Insulation Voltage250 V IEC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation3000 V between terminals and LTB area with basic insulation, 5000 V AC between coil and contact with reinforced insulation
    Operating Rate<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Maximum Switching Capacity 12500 VA AC, 300 W DC
    Drop Out Voltage Threshold>= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
    Carbon Footprint Of The End Of Life Phase C1 To C40.0085288238, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.4233258653
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Resistance100 mOhm
    Contacts Materialsilver alloy (AgSnO2In2O3)
    Control Typelockable test button
    Insulation Resistance1000 MOhm at 500 V DC
    Mechanical Durability10000000 cycles
    Overvoltage CategoryIII
    Product Or Component Typepre-assembled plug-in relay with socket
    Range Of ProductHarmony Electromechanical Relays
    Reset Time20 ms
    Safety Reliability DataB10d = 100000
    Shape Of Pinflat (faston type)
    Status Ledwith
    Test Levelslevel A group mounting
    Utilisation Coefficient20 %
    Control Circuit Voltage 1024 V DC
    Data Sourceextrapolated product
    Customs Code8536410050
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
    Connections Terminalsscrew connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    Certificate AgencyCSA, CE, EAC, UL, DNV
    Carbon Footprint Of The Distribution Phase A40.0074832745, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.0003798696
    Carbon Footprint Of The Use Phase B2 B3 B4 B66 kg CO2 eq., 6.1357871373
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2208012EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1907
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Resistance1100 Ohm at 23 °C +/- 10 %
    Contact Terminal Arrangementseparate
    Contacts Type And Composition1 C/O
    Electrical Insulation Classclass F
    Load Current10 A
    Operating Time20 ms
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typeinterface relay
    ReturnabilityYes
    Series NameRXG series
    Software VersionEIME v5.7.0.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint7 kg CO2 eq.
    Vibration Resistance3 gn +/- 1.5 mm 10-150 Hz)in operation5 gn +/- 1.5 mm 10-150 Hz)not in operation
    Database Version2018-09
    Nbr. Of Units In Pkg.1
    Ithe Conventional Enclosed Thermal Current10 A
    Functional Unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    Functional Unit Unitunité (unit)
    Recyclability Potential In %69

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint6.5755049704
    Environmental DisclosureENVPEP2208012EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2208012EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2208012EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Relative Humidity10-85 %
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typepre-assembled plug-in relay with socket
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 10EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
    Presentation Of Legendwith
    Harmony Electromechanical Plug-In Relay, 10A, 1 CO, 24V DC, LED Indicator
