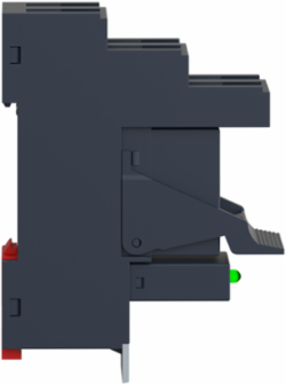

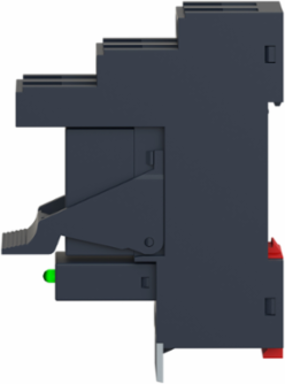

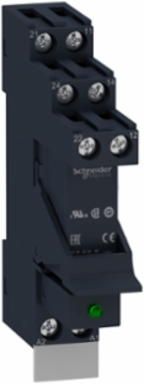

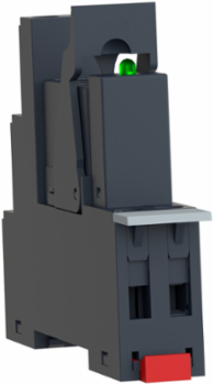

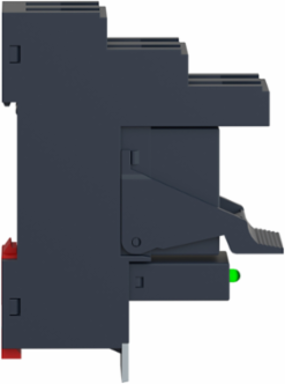

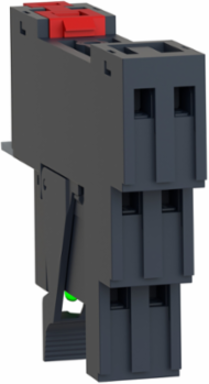

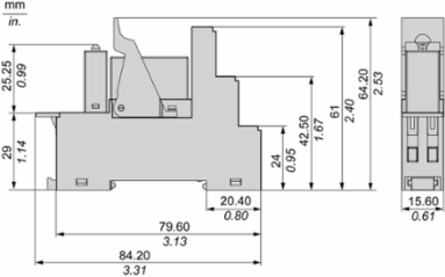

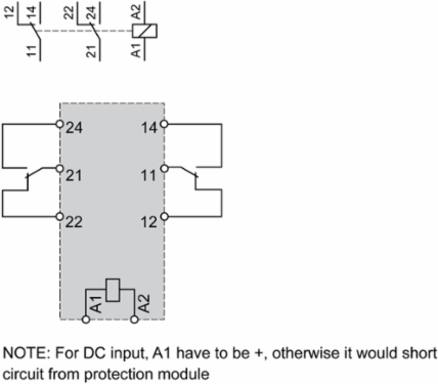

Schneider Electric RSB2A080F7PV Harmony 8A Electromechanical Relay, 2 CO, 120V AC, IP20
- MPN: RSB2A080F7PV
- PPN: SCH-RSB2A080F7PV
CAD
$49.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with varistor protection module and maintaining clamp. This is a 8A, 120Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Rated Current
- 8 A
- Line Rated Current
- 8 A
- Maximum Switching Voltage
- 300 V DC IEC
- Minimum Switching Current
- 10 mA
Control Circuit TypeAC
Maximum Switching Capacity2000 VA AC224 W DC
Minimum Switching Capacity120 mW 10 mA, 12 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Rate
- <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Torque Value
- 0.8 N.m, 7.0 lbf.in
- Contacts Composition
- 2 C/O
- [Uc] Control Circuit Voltage
- AC 50/60 Hz, 230 V
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1002026769
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.5343021033
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.75 VA AC
- Compatibility Code
- RSB
- Contact Terminal Arrangement
- separate
- Contacts Type And Composition
- 2 C/O
- Dielectric Strength
- 1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact
- Load Current
- 8 A 250 V AC8 A 28 V DC
- Operating Position
- any position
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Range Of Product
- Harmony Electromechanical Relays
- Returnability
- No
- Sale Per Indivisible Quantity
- 30
- Shape Of Pin
- flat (PCB type)
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Test Levels
- level A group mounting
- Control Circuit Voltage
- 230 V
- Pep Code
- ENVPEP2403026EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- [Ie] Rated Operational Current
- 4 A AC-1/DC-1) NC IEC8 A AC-1/DC-1) NO IEC
- [Ue] Rated Operational Voltage
- 96...132 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Package Weight(Lbs)
- 56.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Time20 ms operating, 20 ms reset
Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Certificate AgencyCE, UL, CSA, EAC
Connections - Terminalsscrew connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.0078458891, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003856979, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]10 kg CO2 eq., 10.1436347373
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance8800 Ohm AC 20 °C +/- 15 %
Contact Operationstandard
Contacts Materialsilver alloy (AgNi)
Control Typewithout lockable test button
Electrical Durability100000 cycles, 8 A at 250 V, AC-1 NO100000 cycles, 4 A at 250 V, AC-1 NC
Mechanical Durability5000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection CategoryRT I
Relay Typeinterface relay
Safety Reliability DataB10d = 100000
Series NameRSB series
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
Status Ledwith
Switching Voltage12 V
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Control Circuit Type2AC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %75
[Ithe] Conventional Enclosed Thermal Current8 A -40-40 °C
[Ui] Rated Insulation Voltage400 V IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C AC), -40-70 °C AC)-40-70 °C AC), -40-70 °C AC)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 10.7863711044
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2403026EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Overview Attributes
- Device Presentation
- complete product
