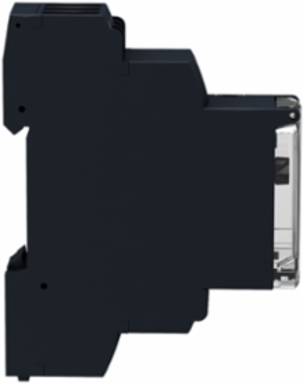

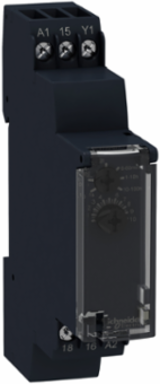

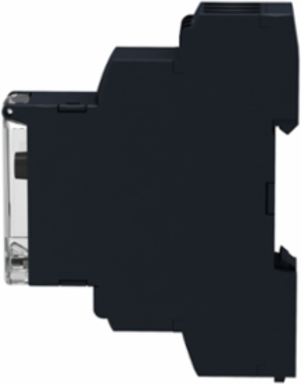

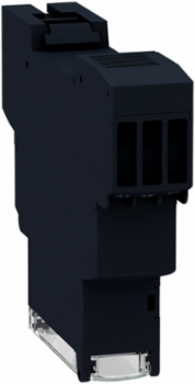

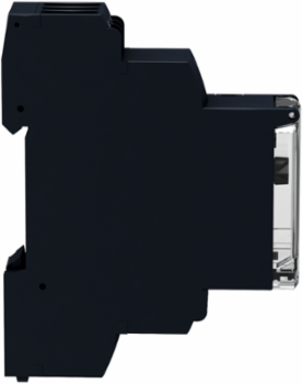

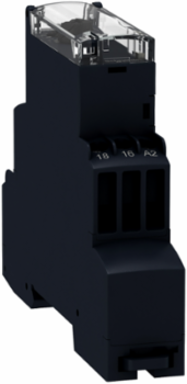

Schneider Electric RE17RHMU Harmony Timer Relay, 8A, On Delay, 24V DC/240V AC, 1 C/O, 100h Max
- MPN: RE17RHMU
- PPN: SCH-RE17RHMU
CAD
$68.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer relay offers Pause / Summation Control signal. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States

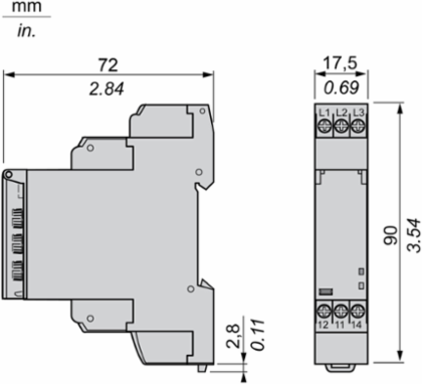

Depth72 mm
Complementary Attributes
- Impulse Duration
- 100 ms with load in parallel typical, 30 ms typical
- Maximum Delay Response
- 100 ms
- Maximum Switching Current
- 8 A AC/DC
- Minimum Switching Current
- 10 mA 5 V DC
Line Rated Current5 A
Maximum Power Consumption In W0.6 W 24 V DC
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch front panel, without test button, without test button
- Function Available
- H- Interval relay-1 C/O, Ht- Interval relay w/ pause/summation (Y1)-1 C/O
- Safety Reliability Data
- B10d = 270000, MTTFd = 296.8 years
- Temperature Drift
- +/- 0.05 %/°C, +/- 0.05 %/°C
- Time Delay Type
- - H- relay, - Ht- relay w/ pause/summation (Y1), H, Ht, interval
- Contacts Composition
- 1 C/O
- Certificate Agency
- cULus, CSA, GL
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.17936841389121552, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.5565700314205309
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Functionality
- on-delay timing
- Immunity To Microbreaks
- 20 ms
- Local Signalling
- LED indicator on steady: relay energised, no timing in progressLED indicator 80 % ON and 20 % OFF flashing: timing in progressLED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
- Mechanical Durability
- 10000000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Operating Rate In Hz
- 10 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Timer Relays
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 53 kg CO2 eq.
- Voltage Range
- 0.85...1.1 Us
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony RE17 timing relay can be set between 0.1 seconds and 100 hours which has an output rating of 8A with 7.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 change over contact SPDT (single pole double throw). It has one of market slimmest form-factors which allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers and product is adhering to international standards.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 13
- Width Nominal
- 17.5 mm
- [Us] Rated Supply Voltage
- 24...240 V AC 50/60 Hz24 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4, 1.2/50 µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5, 1.2/50 µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11, conducted and radiated emissionsclass B EN 55022
Repeat Accuracy+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1+/- 0.5 % IEC 61812-1, +/- 0.5 % IEC 61812-1
Setting Accuracy Of Time Delay+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Time Delay Range10...100 h, 0.1...1 s, 6...60 min, 1...10 s, 1...10 min, 6...60 s, 1...10 h
Voltage Drift+/- 0.2 %/V, +/- 0.2 %/V
Supply Voltage Num 324...240 V AC 50/60 Hz, 24 V DC
[Uc] Control Circuit Voltage24 V, 24...240 V
Carbon Footprint Of The Distribution Phase [A4]0.06002881841570492, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0005717838897834867
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]51 kg CO2 eq., 50.94880139552928
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121113EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1243
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRE17
Contacts Type And Composition1 C/O
Device Short NameRE17R
Electrical Durability100000 cycles resistive 8 A 250 V AC
Housing Materialpolycarbonate
Insulation Resistance100 MOhm 500 V DC IEC 60664-1
MarkingCE
Mounting Positionany position in relation to normal vertical mounting plane
Number Of Functions2
Power Consumption In Va0-32 VA 240 V AC
Product Or Component Typemodular timing relay
Reset Time120 ms on de-energisation typical
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Frequency50...60 Hz +/- 5 %
Tightening Torque0.6-1 N.m IEC 60947-1
Vibration Resistance20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1211017EN
Pep Verification Date2025-10-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal90 mm
[Uimp] Rated Impulse Withstand Voltage5 kV 1.2/50 µs
On-load Factor100 %
Package Weight(Lbs)78.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 52.74534044314652
- Environmental Disclosure
- ENVPEP1211017EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-93 % without condensation IEC 60068-2-30
- Pep Verification Date
- 2025-10-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-30-60 °C, -30-60 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI121113EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1211017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- modular timing relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Discrete Output Type
- relay
- Output Type
- relay
Nominal Output Current8 A
Input Attributes
- Input Voltage
- 10 V
