ABB 1SVR740020R0200 CT-MVS.21P Time relay, multifunction 2c/o, 24-240VAC/DC
ABB 1SVR740020R0200 CT-MVS.21P Time relay, multifunction 2c/o, 24-240VAC/DC
- MPN: 1SVR740020R0200
- UPC: 804325584364
- PPN: ABB-1SVR740020R0200
- UNSPSC: 39122329
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$356.25/ EA
Description

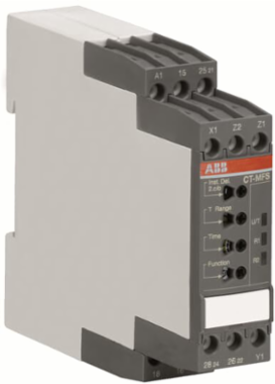

The CT-MVS.21P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. The CT-MVS.21P offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 103.7 mm
Product Net Height85.6 mm
Product Net Weight0.136 kg
Technical
- Function
- Remote potentiometer connection
- Time Range
- 0.05 s ... 300 h
- Rated Operational Voltage
- Auxiliary Circuit 250 V
- Output
- 2 c/o (SPDT) contacts
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Minimum Switching Capacity
- 12 V10 mA
- Rated Insulation Voltage (Ui)
- Input Circuit / Output Circuit 500 VOutput Circuit 1 / Output Circuit 2 300 V
- Overvoltage Category
- III
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
- Mechanical Durability
- 30000000 cycle
- Wire Stripping Length
- 8 mm
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Timer Relay TypeImpulse OFFImpulse ONOFF-DelayON-DelayStar-Delta
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
Rated Frequency (f)DC50 Hz60 Hz
Terminal TypeScrewless Terminals
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kV
Degree of ProtectionHousing IP50Terminals IP20
Pollution Degree3
Electrical DurabilityAC-12 100000 cycle
Connecting CapacityFlexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371605
- E-Number (Sweden)
- 4033127
ETIM 9EC001439 - Timer relay
E-Number (Finland)2712215
Environmental
- Ambient Air Temperature
- Operation -40 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Circular Value
- End of Life Instructions
- 1SAC200290H0001
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
- Flammability According to UL94
- V-0
Contact Rating UL/CSAB300
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
