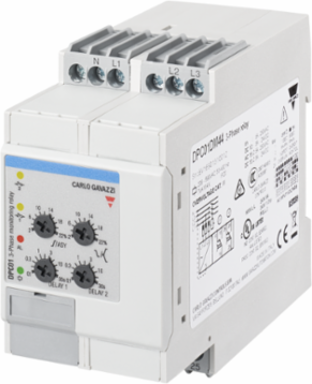

Carlo Gavazzi DPC01DM48 3-Phase Multifunction Monitoring Relay, 380-480V, DIN-Rail, 45x80x99.5mm
- MPN: DPC01DM48
- PPN: CLG-DPC01DM48
CAD
$571.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3-Phase Multifunction Monitoring Relay, 380-480V, DIN-Rail, 45x80x99.5mm
Documentation & Downloads
Specifications
Additional
- Voltage Range
- 380-480 V AC
- Delay-on Energization Time Range
- 0.1 to 30 s
- Function
- Phase sequence, phase loss, overvoltage, undervoltage, voltage asymmetry monitoring
- Phase Imbalance Monitoring
- Yes
- Housing
- DIN-Rail
- Dimensions (W x H x D)
- 45 x 80 x 99.5 mm (1.77 x 3.15 x 3.92 in)
- Electrical Lifetime
- 50,000 operations at 8 A, 250 V, cos =1
- Contact Rating
- 8 A @ 250 VAC (Ith), 2.5 A @ 250 VAC (AC15), 5 A @ 24 VDC (DC12), 2.5 A @ 24 VDC (DC13)
- Terminal Type
- Double cage screw terminals
- Tightening Torque
- Max. 0.5 Nm (4.425 lbin)
- Storage Temperature
- -30 to 80 C (-22 to 176 F)
- Protection Degree
- IP20
- Operating Max Altitude
- 2000 m amsl (6560 ft)
- Overvoltage Category
- III (IEC 60664)
- Colour
- RAL7035 (light grey)
Frequency Range50-60 Hz
Output2 x SPDT relay outputs
Phase Failure DetectionYes
MountingIndustrial DIN-rail
Type of Electric ConnectionScrew connection
MaterialPolyamide (Nylon) PA66/6, Phenylene ether + Polystyrene (PPE-PS)
Mechanical Lifetime>30,000,000 operations
Input TerminalsL1, L2, L3, N
Cable Size0.05 to 2.5 mm2 (AWG30 to AWG13), stranded or solid
Operating Temperature-20 to 60 C (-4 to 140 F)
Relative Humidity5 - 95% non-condensing
Pollution Degree2
Insulation2.5 kVrms, 4 kV impulse 1.2/50 s
ComplianceCE, UKCA, UL508, UL61010, GB/T14048.5
