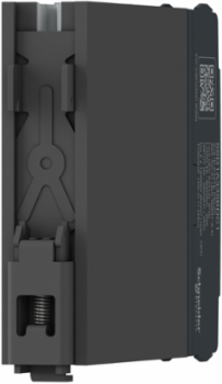

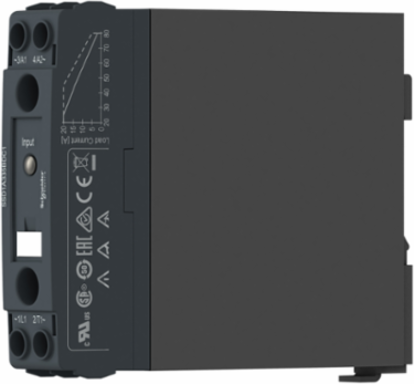

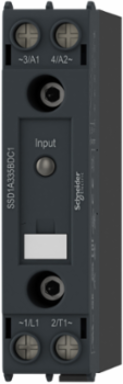

Schneider Electric SSD1A320M7C1 Harmony Solid State Relay, 20A, 90-280V AC/DC Input, 48-600V AC Output
Schneider Electric SSD1A320M7C1 Harmony Solid State Relay, 20A, 90-280V AC/DC Input, 48-600V AC Output
- MPN: SSD1A320M7C1
- PPN: SCH-SSD1A320M7C1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$96.42/ EA
Description

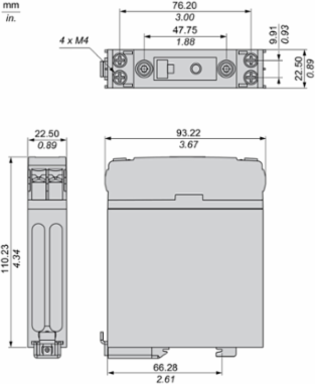

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 20A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.298Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-80 °C
- Pollution Degree
- 2
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27 || 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Flame Retardance
- V-0 UL 94
StandardsIEC 61373:class B category 1 || IEC 60947-4-3 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13 || UL 508
Vibration Resistance0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Ip Degree Of ProtectionIP20
Ambient Air Temperature For Storage-40-100 °C
Complementary
- Network Frequency
- 47...440 Hz
- [Uc] Control Circuit Voltage
- 90...280 V AC/DC
- Connections - Terminals
- screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input || screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output
- Tightening Torque
- 1.5...1.7 N.m control input || 13...15 lb.in control input || 1.5...1.7 N.m load output || 13...15 lb.in load output
- Maximum I²T For Fusing
- 409 A².s 10 ms || 375 A².s 8.33 ms
- Dielectric Strength
- 4 kV AC input/output circuit || 4 kV AC input or output to case
- Load Current
- 0.1-20 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV input/output circuit || 6 kV input or output to case
- Minimum Switching Voltage
- 90 V AC/DC turn-on
- Device Presentation
- complete product
- Absolute Maximum Voltage
- 1200 V
- Local Signalling
- control voltage LED green)
- Solid State Output Type
- zero voltage switching
- Width
- 22.5 mm
- Overvoltage Category
- III
- Depth
- 116.5 mm
- Power Factor
- 0.5 with maximum load
Coordination Typetype 1 || type 2
Height93.2 mm
Output Voltage48...600 V AC
Insulation Resistance1000 MOhm 500 V DC
Maximum Voltage Drop<1.3 V on-state
Response Time20 ms turn-on) || 30 ms turn-off)
Motor Power Kw0.37 kW 0.5 hp 120 V AC || 1.12 kW 1.5 hp 240 V AC || 2.24 kW 3 hp 480 V AC
Net Weight0.298 kg
Maximum Leakage Current1 mA off-state
Electromagnetic Compatibilityelectrostatic discharge 6 kV criteria A contact discharge IEC 61000-4-2 || electrostatic discharge 8 kV criteria A air discharge IEC 61000-4-2 || conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 IEC 61000-4-6 || electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports IEC 61000-4-4 || radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A IEC 61000-4-3 || radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A IEC 61000-4-3 || surge immunity test 1 kV criteria A output ports line to line IEC 61000-4-5 || surge immunity test 2 kV criteria A output ports line to earth IEC 61000-4-5 || surge immunity test 1 kV criteria A input ports line to line IEC 61000-4-5 || surge immunity test 2 kV criteria A input ports line to earth IEC 61000-4-5 || radiated emission environment B for AC input supply IEC 60947-4-3 || conducted emission environment A for AC input supply IEC 60947-4-3 || immunity to microbreaks and voltage drops 30 %, 500 ms criteria A IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 %, 20 ms criteria B IEC 61000-4-11
Dv/Dt500 V/µs off-state at maximum rated voltage
Maximum Switching Voltage5 V AC/DC turn-off
Contact FormForm 5 semiconductor output DOL contactor
Input Current Limits6-10 mA
Inrush Current300 A at 60 Hz
Rated Dutyuninterrupted
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1508007EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1508007EN
Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 20 A
- Number Of Channels
- 1
- [In] Rated Current
- 20 A
- Device Short Name
- SSD1
Output Switching Modezero voltage switching
Network Number Of Phases1 phase
Mounting Support35 mm symmetrical DIN rail IEC 60715
Product Configuration Typerelay configuration
