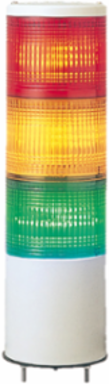

Schneider Electric XVCTL1 Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, base mounting, steady, IP23, 24V AC DC
Schneider Electric XVCTL1 Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, base mounting, steady, IP23, 24V AC DC
- MPN: XVCTL1
- UPC: 785901557234
- PPN: SCH-XVCTL1
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$226.38/ EA
Description
Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, base mounting, steady, IP23, 24V AC DC
Specifications
Specifications
- Beacon Or Indicator Bank Unit Type
- 3 illuminated units
- Supply Circuit Type
- AC/DC
- Product Or Component Type
- complete pre-wired monolithic tower light
- Device Short Name
- XVC
Mounting Diameter40 mm
Light SourceLED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
Sound Signallingbuzzer
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904008EN
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Awg Gauge
- AWG 22 || AWG 18
- Flashing Frequency
- 1 Hz
- Material
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover || SGP (chromium-plated): support tube
- Marking
- CE
- [Us] Rated Supply Voltage
- 24 V
[Uimp] Rated Impulse Withstand Voltage4 kV
Cable Cross Section0.33-0.33 mm² || 0.83-0.83 mm²
Cable Length450 mm
Mounting Locationon support tube, 17 mm
Environment
- Product Certifications
- UL
- Ambient Air Temperature For Storage
- -35-70 °C
- Standards
- IEC 60947-1 || IEC 60947-5-1
- Ip Degree Of Protection
- IP23 vertical surface installation IEC 60529
Ambient Air Temperature For Operation-10-50 °C
Overvoltage Categoryclass I IEC 61140
Protective TreatmentTC
