Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors
Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors
Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors
Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors
Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors
Schneider Electric

Schneider Electric XVGU3SHAV Harmony XVGU 60mm USB Programmable Tower Light with Buzzer, 3 Colors

  • MPN: XVGU3SHAV
  • PPN: SCH-XVGU3SHAV

CAD

$301.54

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

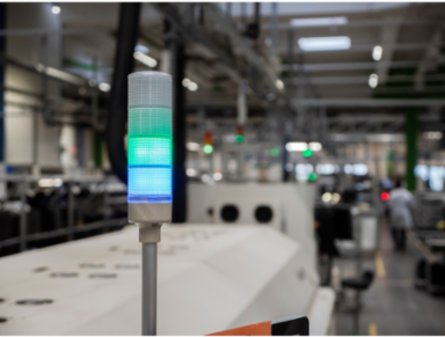

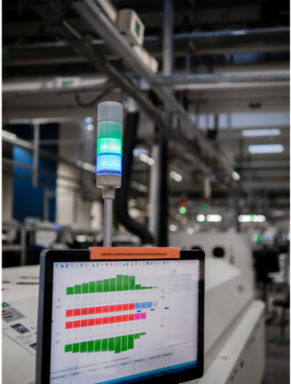

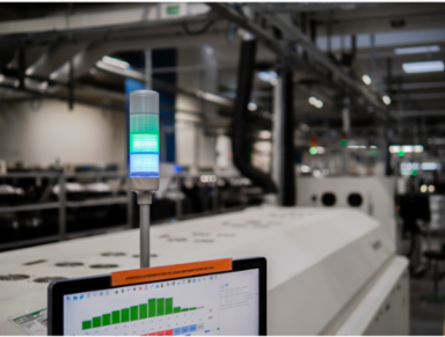

This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application. It is mounted on an aluminium pole. It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It offers configurable color combinations, flashing patterns and buzzer sounds. Included 82dB loud buzzer for alerting on critical machine statuses. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia, United States

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Flashing Frequency
2 Hz flashing LED unit, 1 Hz flashing LED unit
Certificate Agency
GOST, CE, UL 508, cUL, RCM
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.9 kg CO2 eq., 0.9110510992
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
5 kg CO2 eq., 4.7772268872
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Weee Product Category
5
Eoli Availability Display
Yes
Rohs Eur In Scope
No
Rohs Eur Conformity Date
2229
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Beacon Or Indicator Bank Unit Type
3 illuminated units
Connector Type
USB type A female
Electrical Shock Protection Class
class I
Light Source
LED steady or flashing multi-colour
Mounting Diameter
60 mm
Power Consumption In W
2 W
Product Or Component Type
USB configurable monolithic tower light
Returnability
Yes
Sound Signalling
buzzer
Total Lifecycle Carbon Footprint
21 kg CO2 eq.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
The main purpose of the Harmony XVB product range is to provide optical or audible signalling, in particular in order to indicate the different states or sequences of a machine or installation from a distance and through 360° for 10 years.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
31.974
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Us] Rated Supply Voltage
5 V DC
Package Weight(Lbs)
486.000 g
Warranty (In Months)
18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Sound Frequency3800 Hz, 2700 Hz
Carbon Footprint Of The Distribution Phase [A4]0.1571395418, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1314422549, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]15 kg CO2 eq., 14.83125
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2508022EN
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Component NameXVGU
Current Consumption400 mA
Indicator Bank Base Typebase with integrated buzzer
MaterialPC: globe
Noise Level85-85 dB 2 tone buzzer)1 m
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVGU
Software Versionv5.9.4
Sustainable PackagingYes
Pep CodeENVPEP0709007EN
Pep Verification Date2023-12-08
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %9
Nbr. Of Units In Pkg.1
Take-backNo
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]2.2125

Environment Attributes Main

Ambient Air Temperature For Storage
-35-70 °C, -35-70 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
20.8081097831
Circularity Profile
ENVEOLI2508022EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Pep Code
ENVPEP0709007EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Product CompatibilityVijeo Designer 4.6 indoor use only, HMIGTO, XBTGT...., XBTGK...., XBTGC1., XBTGC2., XBTGH
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Environmental DisclosureENVPEP0709007EN
Ip Degree Of ProtectionIP54
Packaging Without Single Use PlasticYes
Pep Verification Date2023-12-08
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
USB configurable monolithic tower light
Range Of ProductHarmony XVGU

ETIM

ETIM 8
EC001042
ETIM 9EC001042

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
