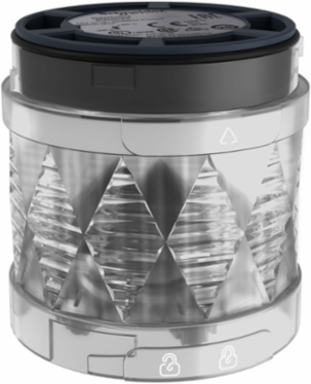

Schneider Electric XVUC47 Harmony XVU Modular Tower Light, 60mm, LED Blinking, IP65, 24V AC/DC
- MPN: XVUC47
- PPN: SCH-XVUC47
CAD
$186.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XVU illuminated unit is supplied with 24V AC/DC and has a white LED with a high brightness flashing light. This white illuminated unit is designed as an accessory to be connected with base and create complete tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Complementary Attributes
- Maximum Power Dissipation In W
- 1.2 W
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Assembly Style
- up to 4 units with buzzer, customer assembly, up to 5 units
- Material
- PC (polycarbonate) V-2 UL 94, PC (polycarbonate) V-0 UL 94
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Component Name
- XVU
- Mounting Diameter
- 60 mm
- Product Or Component Type
- modular tower light
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2308032EN
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Package Weight(Lbs)
- 137.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Device Applicationmachine tools, automotive, packaging machine
Certificate AgencyCSA, CE, UL
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308032EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Beacon Or Indicator Bank Unit TypeLED unit
Light SourceLED, white
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XVU
Signalling Typeblinking
Vibration Resistance2 gn
Length Total50 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2308032EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2308032EN
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308032EN
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
