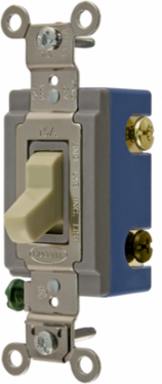

Hubbell Wiring Device-Kellems HBL1203I Extra Heavy Duty 3-Way Toggle Switch, 15A 120/277V AC, Ivory
- MPN: HBL1203I
- UPC: 783585430263
- PPN: HBL-HBL1203I
- UNSPSC: 39122211
CAD
$67.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Ivory Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL1203I AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 1.87 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Amperage Rating | 15 A |
| Color | Ivory |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Weight | 0.2 lb. |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | 3 WAY TOG, IND GRD, 15A 120/277V, IV |
| Harmonization Code | 8536509999 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.700x9.900x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585430263 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359315101 |
| Country of Origin | China |
|---|---|
| Dimensions | 4.06 in x 1.31 in x 1.87 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Action | SPDT |
| Application | Back and Side Wired |
| Number of Poles | Single Pole |
| Size | 4.06 in x 1.31 in x 1.87 in |
| Type | Toggle |
| Voltage Rating Description | 120-277 VAC |
| Width | 1.31 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Three Way |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1203IG |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.2 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 11.250 lb. |
| Lowest Level UOM | Each |
