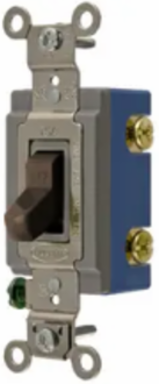

Hubbell Wiring Device-Kellems HBL1201 Extra Heavy Duty Toggle Switch, 15A 120/277V AC, Back & Side Wired, Brown
Hubbell Wiring Device-Kellems HBL1201 Extra Heavy Duty Toggle Switch, 15A 120/277V AC, Back & Side Wired, Brown
- MPN: HBL1201
- UPC: 783585430003
- PPN: HBL-HBL1201
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$37.29/ EA
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Brown Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.06 in x 1.31 in x 1.87 in
- Height
- 1.87 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Application
- Back and Side Wired
- Number of Poles
- Single Pole
- Size
- 4.06 in x 1.31 in x 1.87 in
- Type
- Toggle
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.31 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL1201CN
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.526 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 967.500 lb.
Current / Amperage Rating15 A
Each - Width1.900 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating15 A
ColorBrown
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP TOG, IND GRD, 15A 120/277V, BR
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.300x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585430003
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585430002
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
